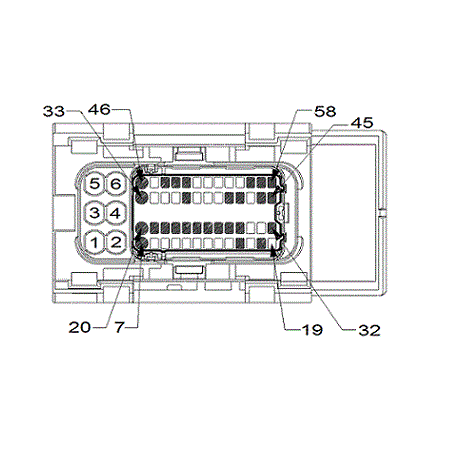

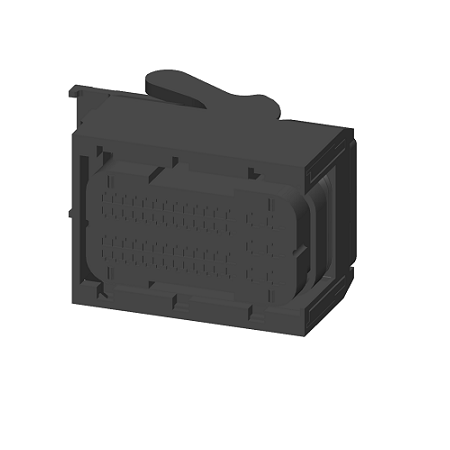

Module-Transmission Control (DF5 9 Speed) Connector End View (D3855A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 22400794001-10234176-1_04_00_75899_1

Part Description: Not Available

Connector No: D3855A

Option: DF5 9 SPEED

Repair Kit Part Number: 68335200AA

Cavity Count: 58

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z907	BK/GN	1.0	GROUND	N/A
2	Z907	BK/GN	1.0	GROUND	N/A
3	F501	PK/YE	0.75	SOLENOID 1 SUPPLY	N/A
4	N0	NA	0	NO CONNECT	N/A
5	A192	VT/RD	0.75	FUSED B(+)	N/A
6	F502	PK/DG	0.75	SOLENOID 2 SUPPLY	N/A
7	N0	NA	0	NO CONNECT	N/A
8	T191	DG/BK	0.50	SENSOR GROUND	N/A
9	F942	PK/VT	0.50	FUSED IGNITION RUN	N/A
10	F893	YE/PK	0.50	5 VOLT SUPPLY	N/A
11	T41	YE/DB	0.50	TRS T41 SIGNAL	N/A
12	F887	VT/PK	0.75	9V SNSR SUPPLY	N/A
13	T3	DG/DB	0.50	TRS T3 SIGNAL	N/A
14	T42	DG/YE	0.50	TRS T42 SIGNAL	N/A
15	T1	DG/BU	0.50	TRS T1 SIGNAL	N/A
16	N0	NA	0	NO CONNECT	N/A
17	T819	YE/VT	0.75	TORQUE CONVERTER OIL TEMP SIG	N/A
18	N0	NA	0	NO CONNECT	N/A
19	T38	YE/BN	0.75	LINE PRESSURE SIGNAL	N/A
20	N0	NA	0	NO CONNECT	N/A
21	N0	NA	0	NO CONNECT	N/A
22	N0	NA	0	NO CONNECT	N/A
23	N0	NA	0	NO CONNECT	N/A
24	N0	NA	0	NO CONNECT	N/A
25	N0	NA	0	NO CONNECT	N/A
26	N0	NA	0	NO CONNECT	N/A
27	N0	NA	0	NO CONNECT	N/A
28	N0	NA	0	NO CONNECT	N/A
29	N0	NA	0	NO CONNECT	N/A
30	T23	YE/OG	0.75	TRANS TEMP RETURN	N/A
31	T52	DG/OG	0.50	INPUT SPEED SIGNAL	N/A
32	N0	NA	0	NO CONNECT	N/A
33	N0	NA	0	NO CONNECT	N/A
34	D29	VT/WH	0.50	CAN C (+)	N/A
35	T808	DG/GY	0.75	SHUT OFF VALVE CONTROL	N/A
36	T62	YE/DG	0.50	DOG CLUTCH SOLENOID F	N/A
37	N0	NA	0	NO CONNECT	N/A
38	T61	YE/BG	0.50	DOG CLUTCH SOLENOID A	N/A
39	T388	YE/BN	0.50	PRESSURE CONTROL SOLENOID LINE PRESSURE	N/A
40	T328	DG/GN	0.50	PRESSURE CONTROL SOLENOID D	N/A
41	N0	NA	0	NO CONNECT	N/A
42	N0	NA	0	NO CONNECT	N/A
43	T14	DG/BN	0.50	OUTPUT SPEED SIGNAL	N/A
44	N0	NA	0	NO CONNECT	N/A
45	N0	NA	0	NO CONNECT	N/A
46	N0	NA	0	NO CONNECT	N/A
47	D30	YE	0.50	CAN C (-)	N/A
48	N0	NA	0	NO CONNECT	N/A
49	N0	NA	0	NO CONNECT	N/A
50	N0	NA	0	NO CONNECT	N/A
51	T64	YE/DB	0.50	HOLDING MAGNET PARK LOCK SOLENOID	N/A
52	T118	DG	0.50	PRESSURE CONTROL SOLENOID TORQUE CONVERTER	N/A
53	T329	DG/BN	0.50	PRESSURE CONTROL SOLENOID E	N/A
54	T325	DG/OG	0.50	PRESSURE CONTROL SOLENOID B	N/A
55	T326	DG/BG	0.50	PRESSURE CONTROL SOLENOID C	N/A
56	N0	NA	0	NO CONNECT	N/A
57	N0	NA	0	NO CONNECT	N/A
58	N0	NA	0	NO CONNECT	N/A
