Module-Trailer Tow C1 (Standard) Connector End View (D2399A)

Harness-Family: Body

Color: GRAY

Gender: FEMALE

Part Number: 33472-1207

Part Description: Not Available

Connector No: D2399A

Option: Standard

Repair Kit Part Number: 68364278AA

Cavity Count: 12

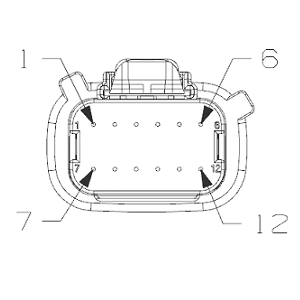

Fig 1: Module-Trailer Tow C1 Connector End View (Standard)

Courtesy of CHRYSLER

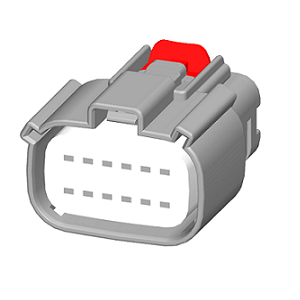

Fig 2: Module-Trailer Tow C1 Isometric View (Standard)

Courtesy of CHRYSLER

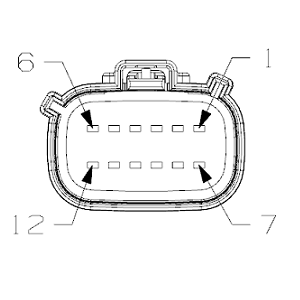

Fig 3: Module-Trailer Tow C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

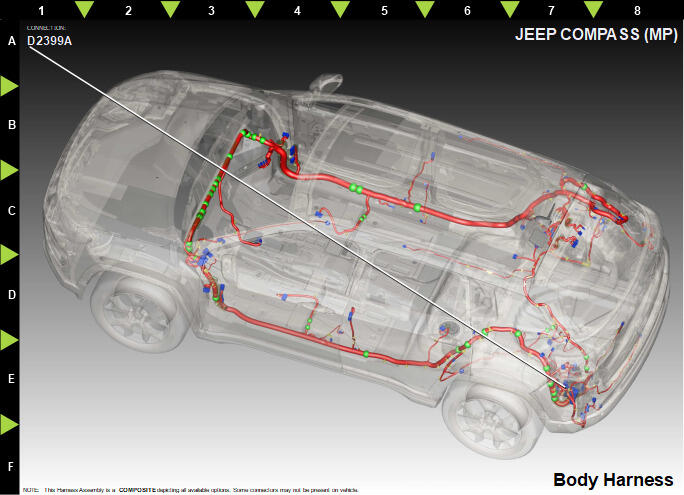

Fig 4: Module-Trailer Tow C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A991	RD	0.75	FUSED B(+)	N/A
2	A992	RD	0.75	FUSED B(+)	N/A
3	F944	PK/GN	0.50	FUSED IGNITION	N/A
4	N0	NA	0	NO CONNECT	N/A
5	Z943	BK	0.75	GROUND	N/A
6	N0	NA	0	NO CONNECT	N/A
7	D191	BN/OG	0.50	CAN IHS (+)	N/A
8	D192	WH/OG	0.50	CAN IHS (-)	N/A
9	L62	WH/YE	1.0	RIGHT REAR TURN LAMP DRIVER	N/A
10	L63	WH/DG	1.0	LEFT REAR TURN LAMP DRIVER	N/A
11	L54	WH/GN	0.75	RIGHT STOP LAMP DRIVER	N/A
12	N0	NA	0	NO CONNECT	N/A
