Module-Security Gateway C2 (Standard) Connector End View (D3921B)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 7283-9028-30

Part Description: YESC KAIZEN SUB ASSEMBLY

Connector No: D3921B

Option: Standard

Repair Kit Part Number: 68496366AA

Cavity Count: 8

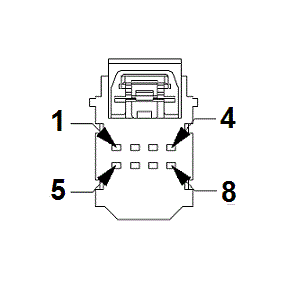

Fig 1: Module-Security Gateway C2 Connector End View (Standard)

Courtesy of CHRYSLER

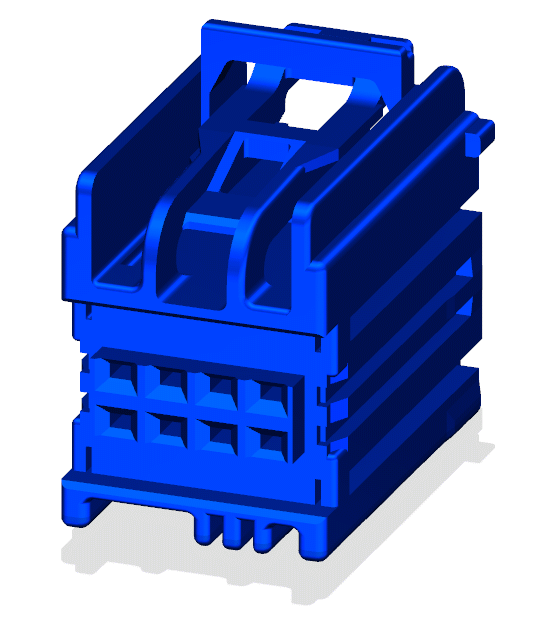

Fig 2: Module-Security Gateway C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Security Gateway C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

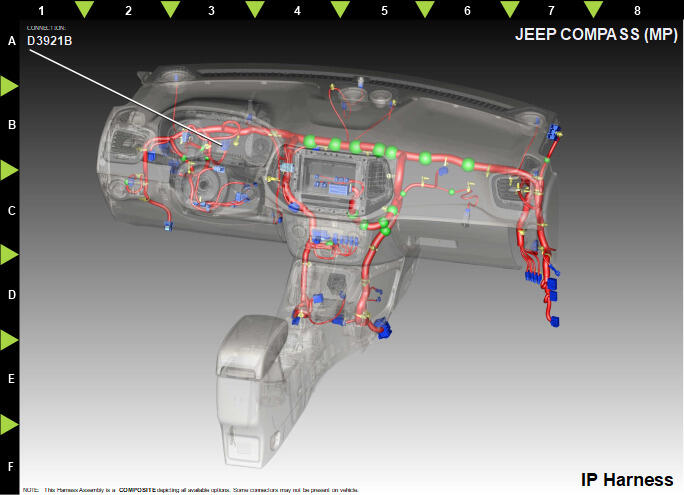

Fig 4: Module-Security Gateway C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D437	DB	0.50	CAN IHS (+) AT	N/A
2	D434	BG	0.50	DIAGNOSTIC CAN IHS (+)	N/A
3	D353	VT/WH	0.50	CAN IHS (+)	N/A
4	Z937	BK/VT	0.75	GROUND	PREMIUM
5	A910	RD	0.75	FUSED B(+)	N/A
6	D438	WH	0.50	CAN IHS (-) AT	N/A
7	D433	WH	0.50	DIAGNOSTIC CAN IHS (-)	N/A
8	D352	YE/DB	0.50	CAN IHS (-)	PREMIUM
