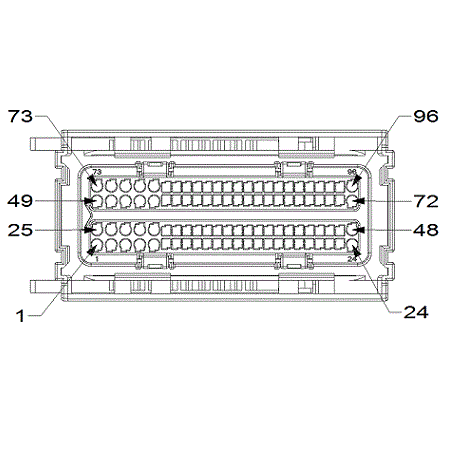

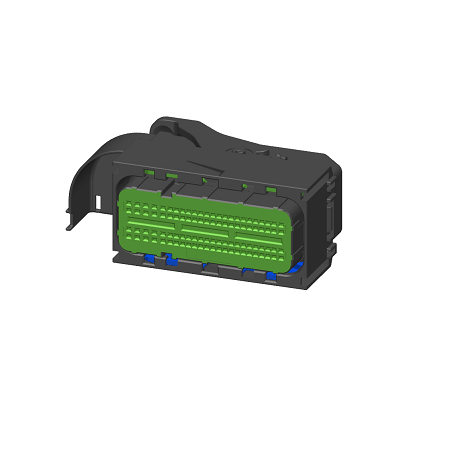

Module-Powertrain Control C1 (2.4L) Connector End View (D3821A)

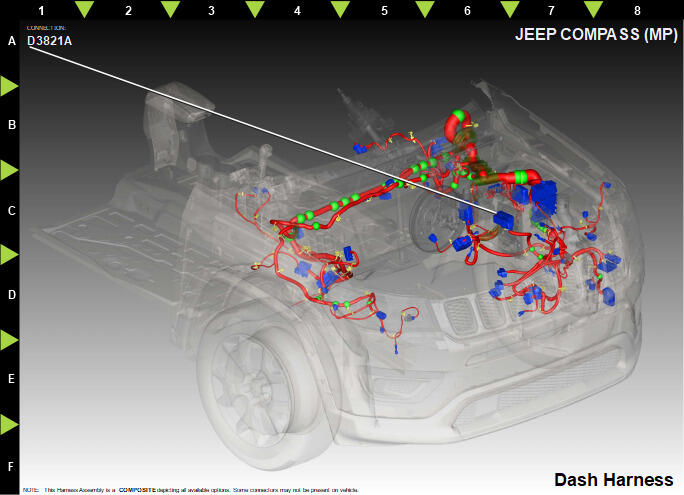

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 2098491-1_2098863-1

Part Description: Not Available

Connector No: D3821A

Option: 2.4L

Repair Kit Part Number: TBD 22 MP

Cavity Count: 96

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
4	K52	DB/WH	0.50	EVAP PURGE CONTROL	N/A
6	T762	DG/YE	0.75	PCR RELAY CONTROL	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
14	N0	NA	0	NO CONNECT	N/A
17	B135	DG/GN	0.35	BRAKE SIGNAL 1	N/A
21	N0	NA	0	NO CONNECT	N/A
22	N0	NA	0	NO CONNECT	N/A
23	F942	PK/VT	0.50	FUSED IGNITION RUN	N/A
24	K854	VT/BN	0.50	5 VOLT SUPPLY	N/A
25	K175	BN/BU	0.75	RAD FAN CONTROL	N/A
26	C13	BU/OG	0.75	A/C CLUTCH CONTROL	N/A
27	K51	BN/WH	0.75	ASD RELAY CONTROL	N/A
28	N0	NA	0	NO CONNECT	N/A
29	K173	BN/VT	0.50	LOW RAD FAN RELAY CONTROL	N/A
30	N0	NA	0	NO CONNECT	N/A
31	N0	NA	0	NO CONNECT	N/A
32	N0	NA	0	NO CONNECT	N/A
33	D2	YE	0.50	CAN C (-)	N/A
34	N0	NA	0	NO CONNECT	N/A
35	N0	NA	0	NO CONNECT	N/A
36	N0	NA	0	NO CONNECT	N/A
37	N0	NA	0	NO CONNECT	N/A
38	N0	NA	0	NO CONNECT	N/A
39	N0	NA	0	NO CONNECT	N/A
41	N7	DB/OG	0.50	FUEL TANK PRESSURE SIGNAL	N/A
42	N0	NA	0	NO CONNECT	N/A
43	T753	DG/YE	0.75	IGNITION CRANK SENSE	N/A
44	N0	NA	0	NO CONNECT	N/A
45	N0	NA	0	NO CONNECT	N/A
46	N0	NA	0	NO CONNECT	N/A
47	K859	BN/DB	0.35	5 VOLT SUPPLY	N/A
48	K852	GY/BU	0.50	5 VOLT SUPPLY	N/A
49	N0	NA	0	NO CONNECT	N/A
50	N0	NA	0	NO CONNECT	N/A
51	Z909	BK	1.5	GROUND	N/A
52	Z909	BK	1.5	GROUND	N/A
53	Z909	BK	1.5	GROUND	N/A
54	N0	NA	0	NO CONNECT	N/A
55	N0	NA	0	NO CONNECT	N/A
56	N0	NA	0	NO CONNECT	N/A
57	D1	BG/WH	0.50	CAN C (+)	N/A
58	N0	NA	0	NO CONNECT	N/A
59	N0	NA	0	NO CONNECT	N/A
60	N0	NA	0	NO CONNECT	N/A
61	N0	NA	0	NO CONNECT	N/A
62	N0	NA	0	NO CONNECT	N/A
63	K806	DB/BN	0.75	STOP START HOOD AJAR SW SIG	N/A
64	C18	BU/BN	0.50	A/C PRESSURE SIGNAL	N/A
65	N0	NA	0	NO CONNECT	N/A
66	N0	NA	0	NO CONNECT	N/A
67	K400	BN/VT	0.50	APP SENSOR GROUND 2	N/A
68	K167	BN/YE	0.50	APP SENSOR GROUND 1	N/A
69	N0	NA	0	NO CONNECT	N/A
70	K917	BN/BG	0.35	SENSOR GROUND	N/A
71	K31	BN	0.75	FUEL PUMP CONTROL	N/A
72	Z909	BK	1.5	GROUND	N/A
73	F342	BN/WH	1.5	FUSED ASD RELAY OUTPUT	N/A
74	F342	BN/WH	1.5	FUSED ASD RELAY OUTPUT	N/A
75	F342	BN/WH	1.5	FUSED ASD RELAY OUTPUT	N/A
76	F342	BN/WH	1.5	FUSED ASD RELAY OUTPUT	N/A
77	F342	BN/WH	1.5	FUSED ASD RELAY OUTPUT	N/A
78	N0	NA	0	NO CONNECT	N/A
79	N0	NA	0	NO CONNECT	N/A
80	N0	NA	0	NO CONNECT	N/A
81	N0	NA	0	NO CONNECT	N/A
82	N0	NA	0	NO CONNECT	N/A
83	N0	NA	0	NO CONNECT	N/A
84	N0	NA	0	NO CONNECT	N/A
85	N0	NA	0	NO CONNECT	N/A
86	N0	NA	0	NO CONNECT	N/A
87	K914	BN/WH	0.50	SENSOR GROUND	N/A
88	N0	NA	0	NO CONNECT	N/A
89	N0	NA	0	NO CONNECT	N/A
90	N0	NA	0	NO CONNECT	N/A
91	K29	WH/BN	0.50	APP SIGNAL 2	N/A
92	K23	BN/WH	0.50	APP SIGNAL 1	N/A
93	N0	NA	0	NO CONNECT	N/A
94	K108	VT/GY	0.50	EVAP PURGE SOLENOID SENSE	N/A
95	T752	DG/OG	0.75	STARTER RELAY CONTROL	N/A
96	A908	RD	1.0	FUSED B(+)	N/A
