Module-Power-Blower Motor-Front C2 (Standard) Connector End View (D6608B)

Harness-Family: HVAC_Jumper

Color: GRAY

Gender: FEMALE

Part Number: A.731.007.0.0

Part Description: Not Available

Connector No: D6608B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

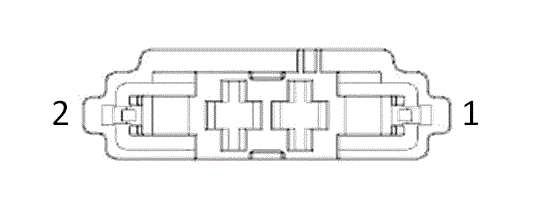

Fig 1: Module-Power-Blower Motor-Front C2 Connector End View (Standard)
GCWD1240273Courtesy of CHRYSLER

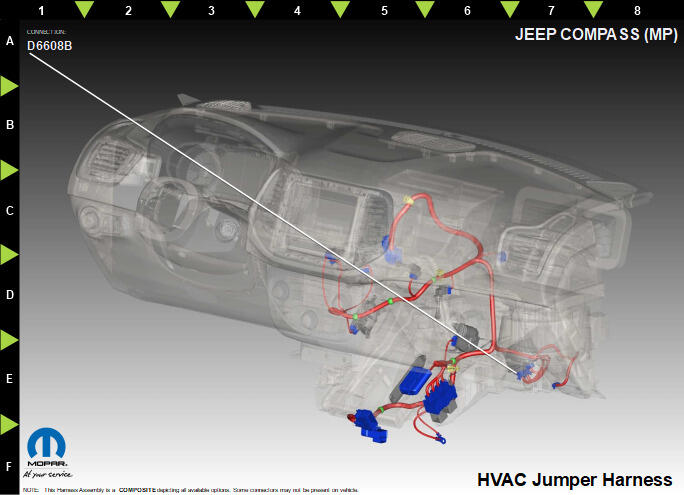

Fig 2: Module-Power-Blower Motor-Front C2 Component Location View (Standard)
GCWD1323540Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z913 BK 05 GROUND N/A
2 C7 OG 04 BLOWER MOTOR SUPPLY N/A
