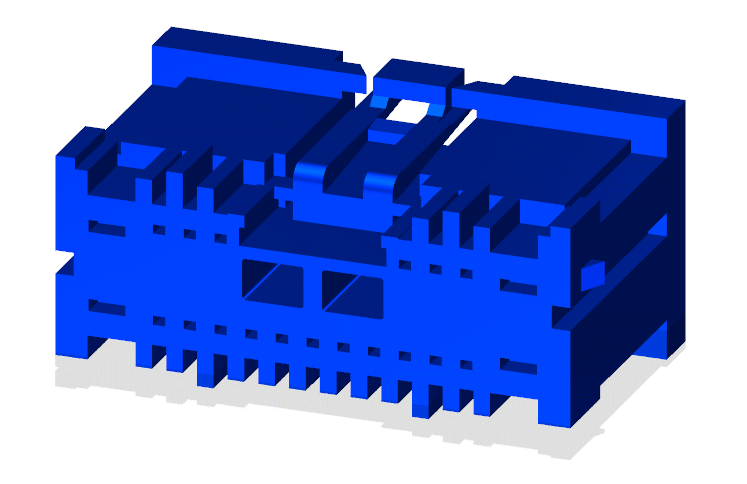

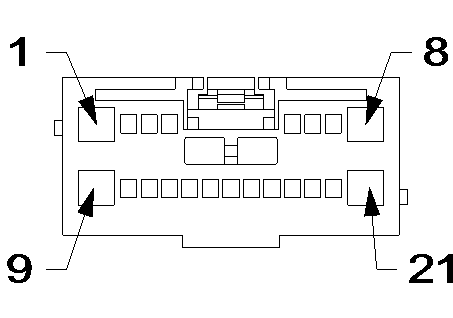

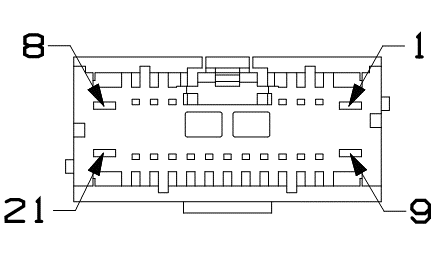

Module-Power Liftgate C2 (Standard) Connector End View (D3839B)

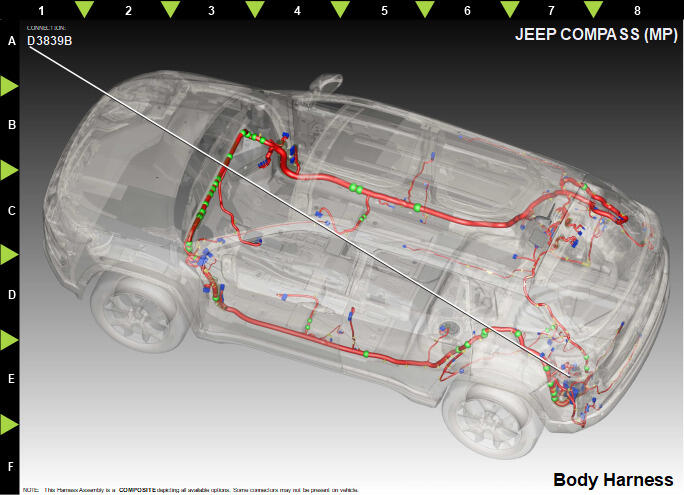

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1924126-1

Part Description: Not Available

Connector No: D3839B

Option: Standard

Repair Kit Part Number: 68307306AA

Cavity Count: 21

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A111	DG/RD	2.0	FUSED B(+)	N/A
2	N0	NA	0	NO CONNECT	N/A
3	Q73	OG/VT	0.50	LATCH GEAR POSITION 2	N/A
4	G178	VT/OG	0.35	DECKLID/LIFTGATE AJAR SWITCH SENSE	N/A
5	N0	NA	0	NO CONNECT	N/A
6	D251	WH/OG	0.50	CAN IHS (+)	N/A
7	D250	WH	0.50	CAN IHS (-)	N/A
8	Q92	BG/BN	0.75	LIFTGATE LATCH MOTOR (+)	N/A
9	Z943	BK/OG	2.0	GROUND	N/A
10	N0	NA	0	NO CONNECT	N/A
11	N0	NA	0	NO CONNECT	N/A
12	G29	VT	0.35	LIFTGATE SWITCH SIGNAL	N/A
13	Q901	OG/VT	0.35	LOGIC GROUND	N/A
14	Q74	OG/GY	0.50	LIFTGATE LATCH CINCH DRIVER	N/A
15	Q60	OG/YE	0.50	LIFTGATE SECONDARY LATCH SIGNAL	N/A
16	Q79	OG/BU	0.50	LATCH GEAR POSITION 1	N/A
17	N0	NA	0	NO CONNECT	N/A
18	Q75	OG/BU	0.50	LEFT PINCH SENSOR SIGNAL	N/A
19	Q78	OG/DB	0.50	RIGHT PINCH SENSOR SIGNAL	N/A
20	G25	VT/BG	0.35	OVERHEAD CONSOLE LIFTGATE SWITCH SIGNAL	N/A
21	Q93	BG/OG	0.75	LIFTGATE LATCH MOTOR (-)	N/A
