Module-Power Liftgate C1 (Standard) Connector End View (D3839A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1924667-1

Part Description: Not Available

Connector No: D3839A

Option: Standard

Repair Kit Part Number: 68307299AA

Cavity Count: 13

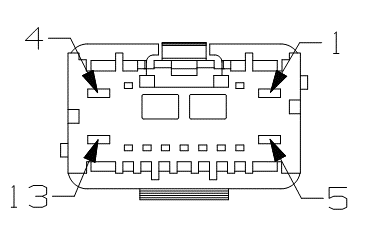

Fig 1: Module-Power Liftgate C1 Connector End View (Standard)
GCWD1006538Courtesy of CHRYSLER

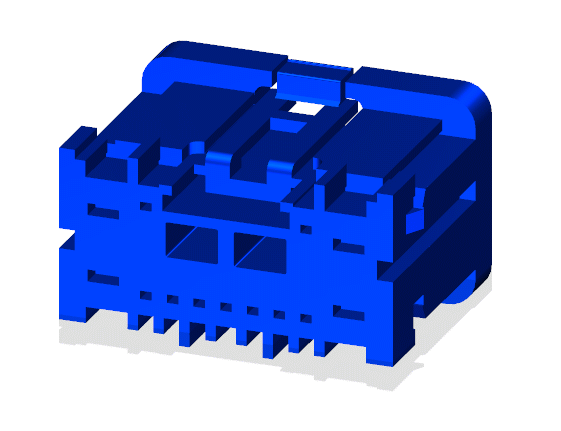

Fig 2: Module-Power Liftgate C1 Isometric View (Standard)
GCWD1082673Courtesy of CHRYSLER

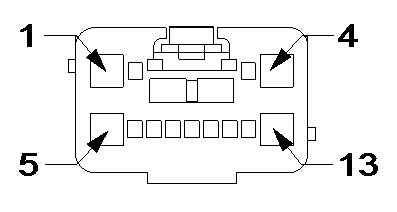

Fig 3: Module-Power Liftgate C1 Wire Insertion View (Standard)
GCWD1007711Courtesy of CHRYSLER

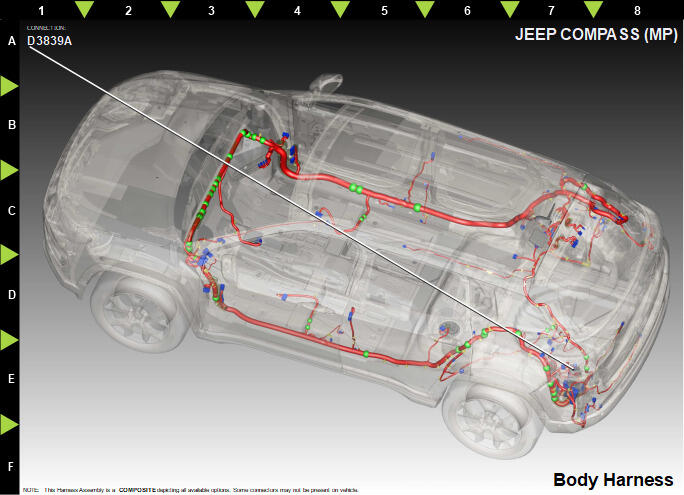

Fig 4: Module-Power Liftgate C1 Component Location View (Standard)
GCWD1323652Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Q89 BG/OG 2.0 LIFTGATE CLOSE DRIVER N/A
2 N0 NA 0 NO CONNECT N/A
3 N0 NA 0 NO CONNECT N/A
4 N0 NA 0 NO CONNECT N/A
5 Q88 BG/BN 2.0 LIFTGATE OPEN DRIVER N/A
6 Q203 OG/BG 0.50 POSITION SENSOR SUPPLY N/A
7 Q204 OG/DG 0.50 POSITION SENSOR SIGNAL 1 N/A
8 Q205 OG/DB 0.50 POSITION SENSOR SIGNAL 2 N/A
9 N0 NA 0 NO CONNECT N/A
10 N0 NA 0 NO CONNECT N/A
11 N0 NA 0 NO CONNECT N/A
12 N0 NA 0 NO CONNECT N/A
13 Q201 OG/GN 0.50 LIFTGATE CLUTCH DRIVER N/A
