Module-Keyless Ignition Node (Standard) Connector End View (D2664A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 776204-2

Part Description: INSULATOR

Connector No: D2664A

Option: Standard

Repair Kit Part Number: 05183472AA

Cavity Count: 6

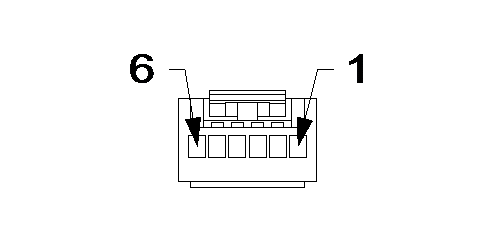

Fig 1: Module-Keyless Ignition Node Connector End View (Standard)

Courtesy of CHRYSLER

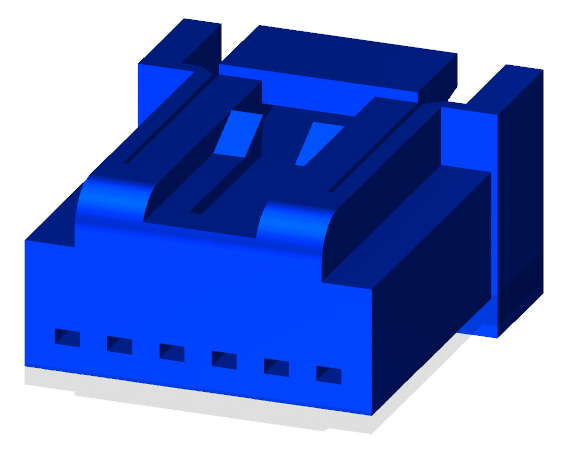

Fig 2: Module-Keyless Ignition Node Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Keyless Ignition Node Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Keyless Ignition Node Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	Z937	BK/BU	0.35	GROUND	PREMIUM
4	G20	VT/BN	0.35	IGNITION SWITCH SENSE	N/A
5	D122	WH/GN	0.35	SECURITY K LINE COMMUNICATION	N/A
6	A938	RD	0.35	FUSED B(+)	N/A
