Module-Integrated Center Stack Switch Bank (Standard) Connector End View (D2695A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 30700-1081

Part Description: Not Available

Connector No: D2695A

Option: Standard

Repair Kit Part Number: 68440510AA

Cavity Count: 8

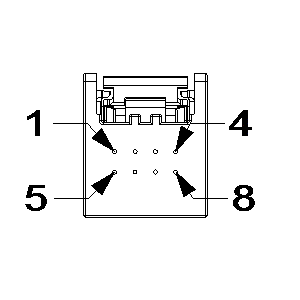

Fig 1: Module-Integrated Center Stack Switch Bank Connector End View (Standard)

Courtesy of CHRYSLER

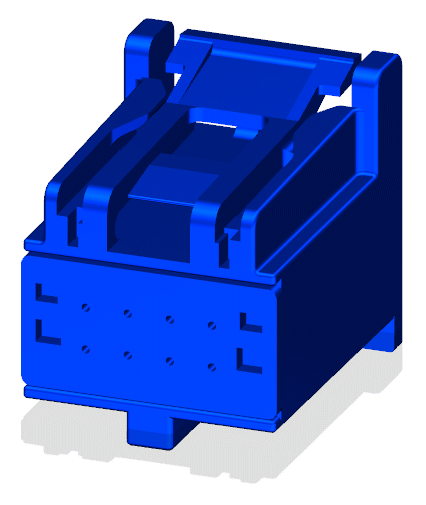

Fig 2: Module-Integrated Center Stack Switch Bank Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Integrated Center Stack Switch Bank Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Integrated Center Stack Switch Bank Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D463	OG	0.50	CAN IHS (+)	N/A
2	R168	GN/WH	0.50	AIRBAG OFF LAMP PASSENGER	N/A
3	R167	DB	0.50	AIRBAG ON LAMP PASSENGER	N/A
4	A910	RD	0.75	FUSED B(+)	N/A
5	D462	WH	0.50	CAN IHS (-)	N/A
6	L2	WH/BU	0.35	HAZARD GROUND	N/A
7	Z930	BK/VT	0.75	GROUND	PREMIUM
8	L91	WH/DB	0.35	HAZARD SWITCH SENSE	N/A
