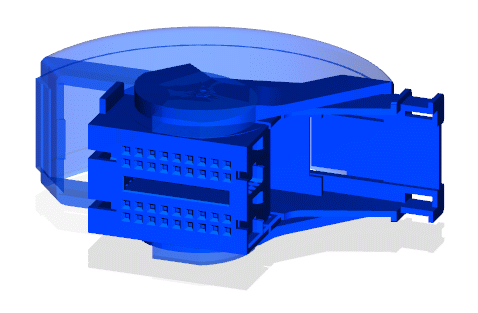

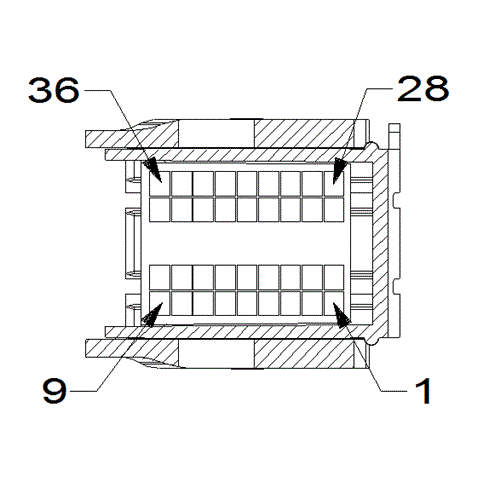

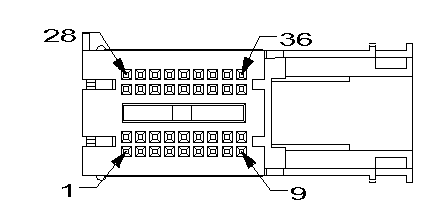

Module-HVAC C1 (Standard) Connector End View (D3828A)

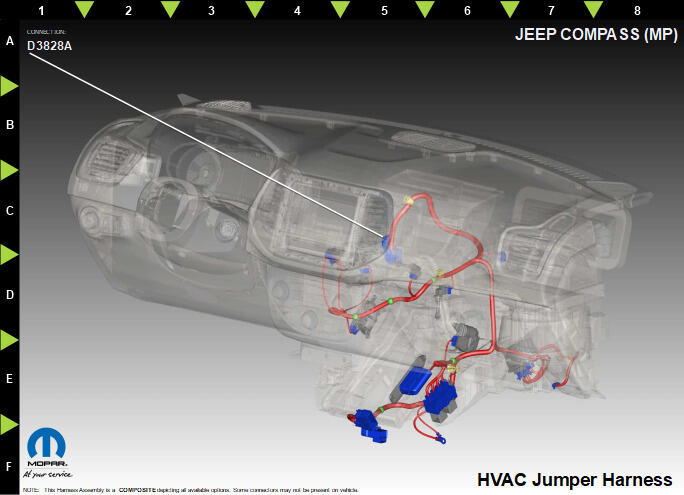

Harness-Family: HVAC_Jumper

Color: GRAY

Gender: FEMALE

Part Number: 13530010_13530008

Part Description: Not Available

Connector No: D3828A

Option: Standard

Repair Kit Part Number: 68499396AA

Cavity Count: 36

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F944	PK/GN	0.35	FUSED IGNITION	N/A
2	A910	YE/RD	0.50	FUSED B(+)	N/A
4	D101	YE/GY	0.35	CAN IHS (+)	N/A
5	D102	WH/PK	0.35	CAN IHS (-)	N/A
6	Z913	BK/VT	0.50	GROUND	N/A
8	C55	WH/RD	0.35	LEFT BLEND DOOR COMMON DRIVER	N/A
9	C255	OG/BK	0.35	LEFT BLEND DOOR DRIVER	N/A
10	C27	RD/GN	0.50	A/C COMPRESSOR CONTROL	N/A
15	C56	BU/GN	0.35	BLOWER CONTROL	N/A
16	C6	BU/BK	0.35	BLOWER MOTOR POWER RETURN	N/A
17	C266	RD/PK	0.35	MODE DOOR DRIVER	N/A
18	C66	GY/BK	0.35	MODE DOOR COMMON DRIVER	N/A
19	C134	BN	0.50	RIGHT PANEL TEMPERATURE SENSOR SIGNAL	N/A
20	C162	GN	0.50	LEFT PANEL TEMPERATURE SENSOR SIGNAL	N/A
21	C21	BU/YE	0.35	EVAPORATOR TEMPERATURE SENSOR SIGNAL	N/A
22	C235	GY/GN	0.35	MODE DOOR SIGNAL	N/A
23	C26	WH/GN	0.35	REFERENCE VOLTAGE SUPPLY	N/A
24	C233	BU/WH	0.35	LEFT BLEND DOOR SIGNAL	N/A
25	C333	BK/VT	0.35	SIGNAL GROUND	N/A
26	C68	GY/RD	0.35	RECIRCULATION DOOR COMMON DRIVER	N/A
27	C268	BN/GN	0.35	RECIRCULATION DOOR DRIVER	N/A
28	C130	WH	0.50	RIGHT FLOOR TEMPERATURE SENSOR SIGNAL	N/A
29	C164	OG	0.50	LEFT FLOOR TEMPERATURE SENSOR SIGNAL	N/A
30	C131	BK/RD	0.50	SENSOR GROUND	N/A
31	C224	WH/GY	0.35	RIGHT BLEND DOOR SIGNAL	N/A
33	C32	BN/BK	0.35	RECIRC DOOR SIG	N/A
35	C252	YE/GY	0.35	RIGHT BLEND DOOR DRIVER	N/A
36	C52	GN/BK	0.35	RIGHT BLEND DOOR COMMON DRIVER	N/A
