Module-Global TELEMATIC Box C6 (Standard) Connector End View (D335F)

Harness-Family: IP

Color: BLACK

Gender: MALE

Part Number: 33208443

Part Description: Not Available

Connector No: D335F

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

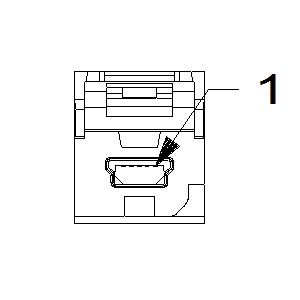

Fig 1: Module-Global Telematic Box C6 Connector End View (Standard)
GCWD1013323Courtesy of CHRYSLER

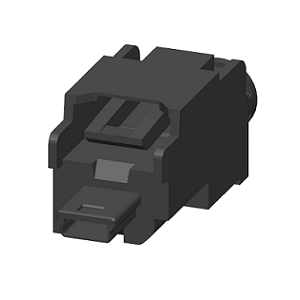

Fig 2: Module-Global Telematic Box C6 Isometric View (Standard)
GCWD1011059Courtesy of CHRYSLER

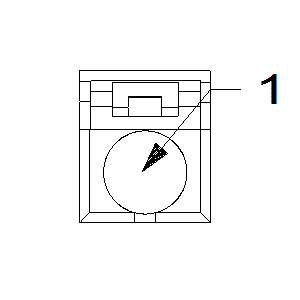

Fig 3: Module-Global Telematic Box C6 Wire Insertion View (Standard)
GCWD1007384Courtesy of CHRYSLER

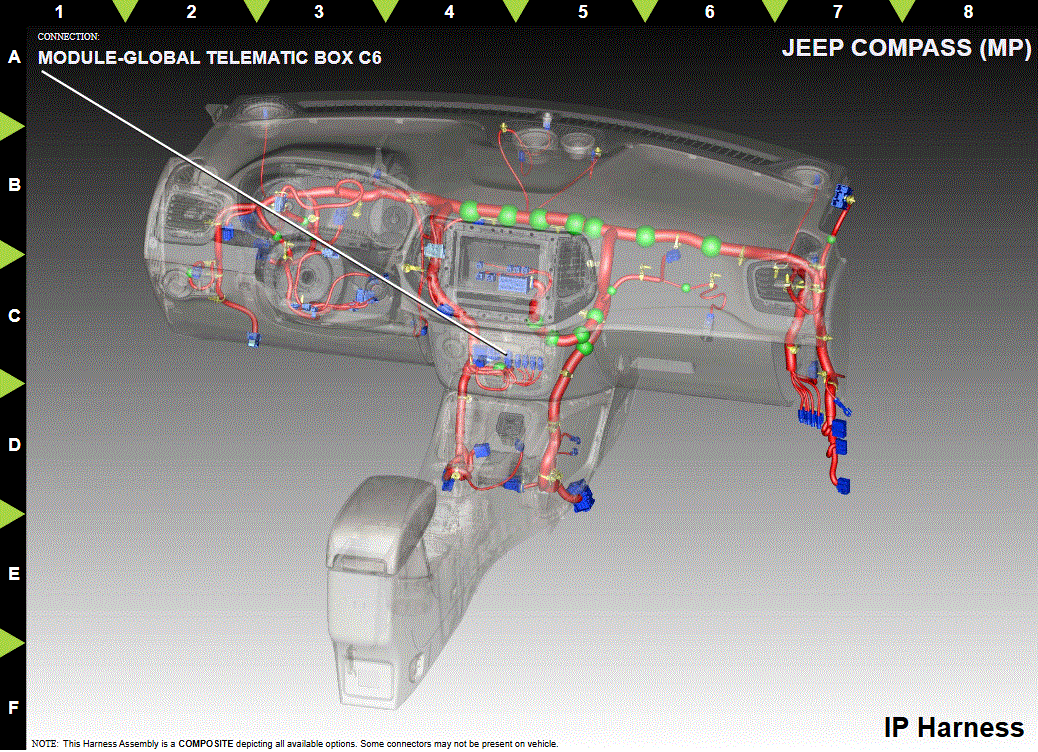

Fig 4: Module-Global Telematic Box C6 Component Location View (Standard)
GCWD1323246Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 J209 BK 0.14 USB CABLE N/A
