Module-Global TELEMATIC Box C3 (Standard) Connector End View (D335C)

Harness-Family: IP

Color: BLUE

Gender: FEMALE

Part Number: 59Z113-000-C

Part Description: Not Available

Connector No: D335C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

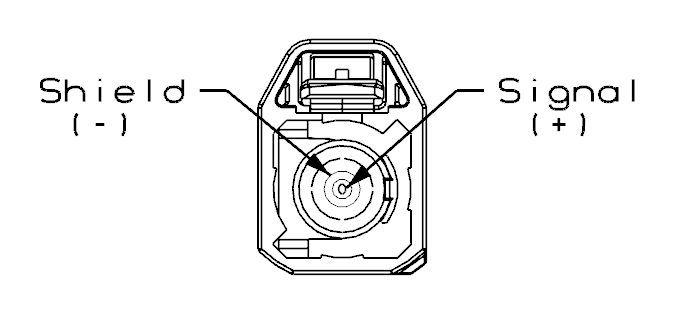

Fig 1: Module-Global Telematic Box C3 Connector End View (Standard)
GCWD1087009Courtesy of CHRYSLER

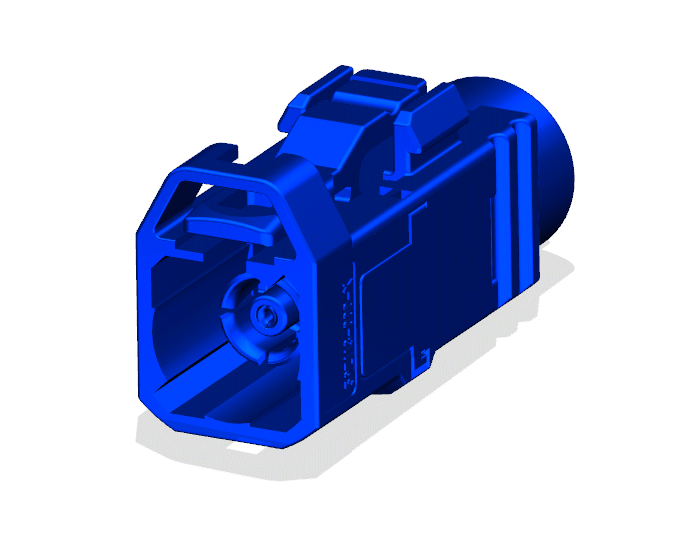

Fig 2: Module-Global Telematic Box C3 Isometric View (Standard)
GCWD1089691Courtesy of CHRYSLER

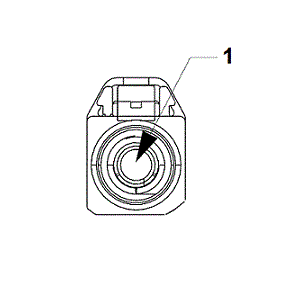

Fig 3: Module-Global Telematic Box C3 Wire Insertion View (Standard)
GCWD1008056Courtesy of CHRYSLER
Fig 4: Module-Global Telematic Box C3 Component Location View (Standard)
GCWD1323248Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D944 BK 0.82 GPS/SATELLITE RADIO ANTENNA SIGNAL N/A
