Module-Global TELEMATIC Box C2 (Standard) Connector End View (D335B)

Harness-Family: IP

Color: BORDEAUX

Gender: FEMALE

Part Number: 59Z113-000-D

Part Description: Not Available

Connector No: D335B

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 1

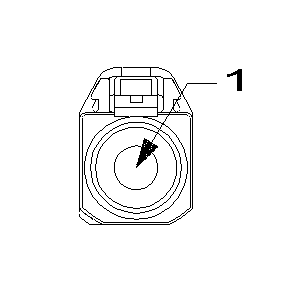

Fig 1: Module-Global Telematic Box C2 Connector End View (Standard)

Courtesy of CHRYSLER

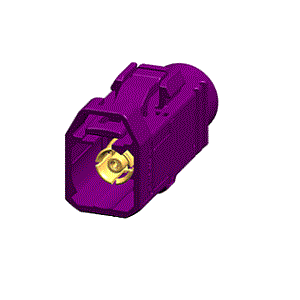

Fig 2: Module-Global Telematic Box C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Global Telematic Box C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

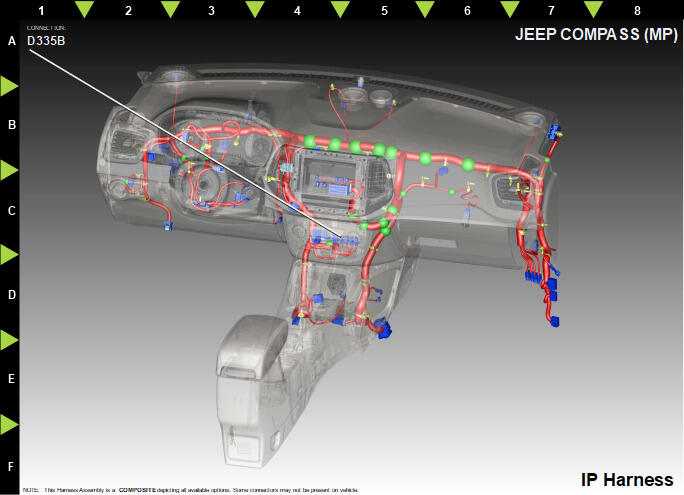

Fig 4: Module-Global Telematic Box C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D7	BK	0.82	CELLULAR ANTENNA SIGNAL	N/A
