Module-Fuel Pump (Standard) Connector End View (D6602B)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 33405994

Part Description: Not Available

Connector No: D6602B

Option: Standard

Repair Kit Part Number: 68502135AA

Cavity Count: 6

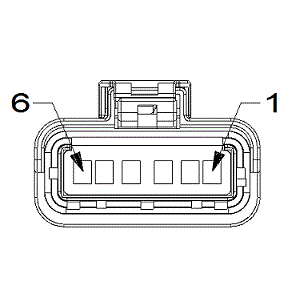

Fig 1: Module-Fuel Pump Connector End View (Standard)

Courtesy of CHRYSLER

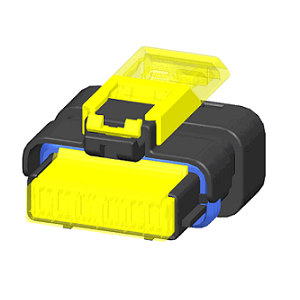

Fig 2: Module-Fuel Pump Isometric View (Standard)

Courtesy of CHRYSLER

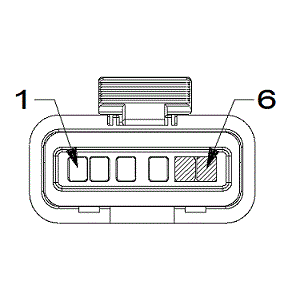

Fig 3: Module-Fuel Pump Wire Insertion View (Standard)

Courtesy of CHRYSLER

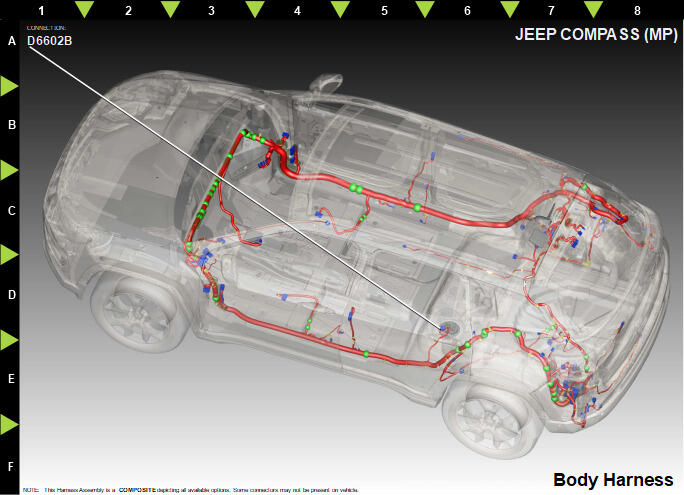

Fig 4: Module-Fuel Pump Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	G109	BK	0.50	FUEL LEVEL SENSE RETURN	N/A
2	N4	DB/WH	0.50	FUEL LEVEL SENSOR SIGNAL	N/A
3	Z941	BK/VT	1.5	GROUND	N/A
4	N1	DB/OG	1.5	FUEL PUMP CONTROL OUTPUT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
