Module-EPS C1 (Standard) Connector End View (D2777A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 15425499_15329074

Part Description: Not Available

Connector No: D2777A

Option: Standard

Repair Kit Part Number: 68268736AA

Cavity Count: 10

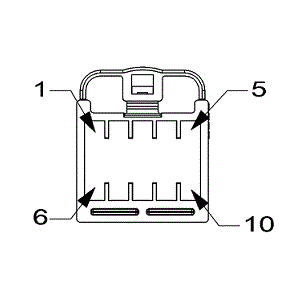

Fig 1: Module-Eps C1 Connector End View (Standard)

Courtesy of CHRYSLER

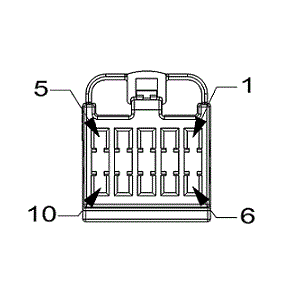

Fig 2: Module-Eps C1 Isometric View (Standard)

Courtesy of CHRYSLER

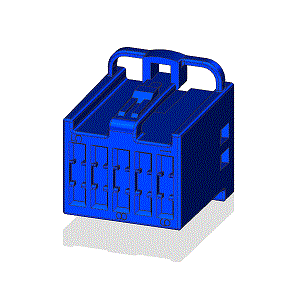

Fig 3: Module-Eps C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

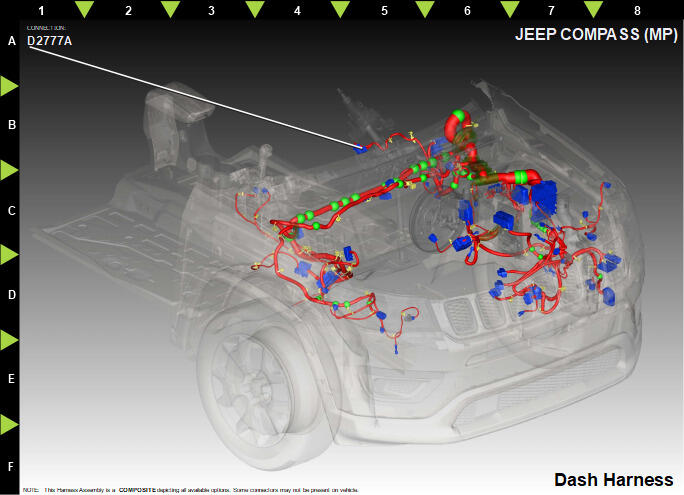

Fig 4: Module-Eps C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F941	PK/WH	0.50	IGNITION RUN/START CONTROL OUTPUT	N/A
2	D139	YE/BN	0.50	CAN CH (+)	N/A
3	D138	YE	0.50	CAN CH (-)	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
