Module-Body Control C8 (Standard) Connector End View (D2762H)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 15482410_15482404

Part Description: Not Available

Connector No: D2762H

Option: Standard

Repair Kit Part Number: 68335235AA

Cavity Count: 60

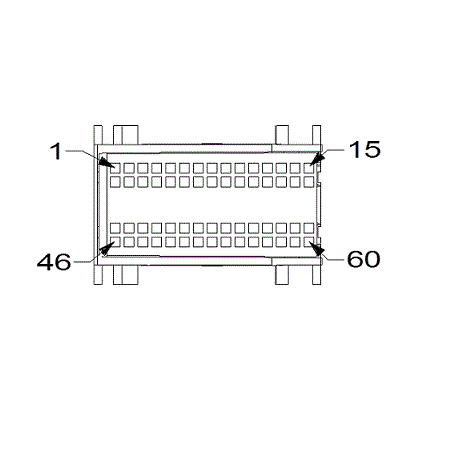

Fig 1: Module-Body Control C8 Connector End View (Standard)

Courtesy of CHRYSLER

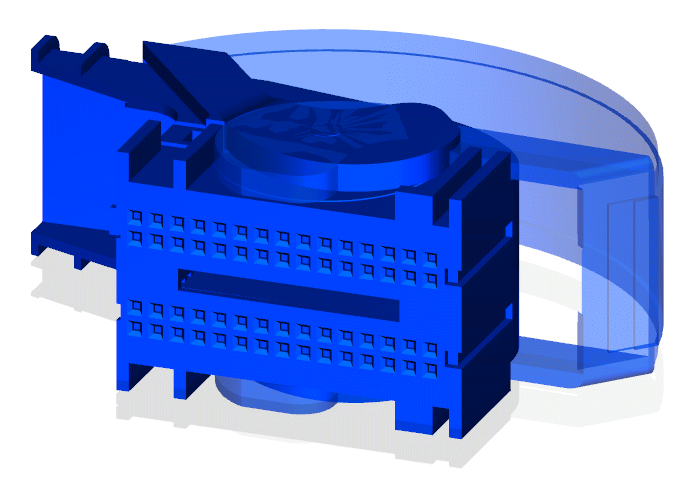

Fig 2: Module-Body Control C8 Isometric View (Standard)

Courtesy of CHRYSLER

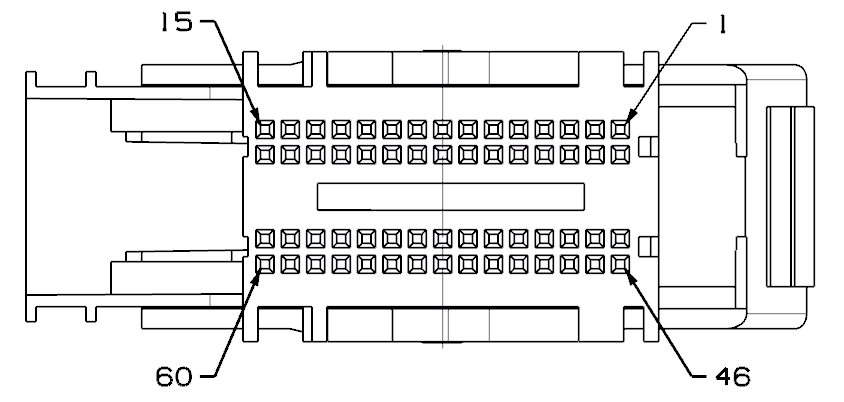

Fig 3: Module-Body Control C8 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Body Control C8 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	L116	WH/GN	0.35	HEADLAMP/FOG LAMP SWITCH SIGNAL	N/A
11	X3	DG/VT	0.50	HORN SWITCH SENSE	N/A
12	F20	PK/WH	0.50	IGNITION RUN/START CONTROL OUTPUT	N/A
13	E12	OG/GY	0.50	PANEL LAMPS DRIVER	N/A
14	N0	NA	0	NO CONNECT	N/A
15	G17	VT/BK	0.50	IMMOBILIZER ANTENNA RETURN	N/A
16	N0	NA	0	NO CONNECT	N/A
17	N0	NA	0	NO CONNECT	N/A
18	L12	WH/OG	0.35	TURN SIGNAL INPUT MUX	N/A
19	N0	NA	0	NO CONNECT	N/A
20	N0	NA	0	NO CONNECT	N/A
21	N0	NA	0	NO CONNECT	N/A
22	L37	WH/BN	0.35	HIGH BEAM SWITCH SENSE	N/A
23	G69	VT/WH	0.35	VTSS INDICATOR DRIVER	N/A
24	F307	BU/PK	0.35	FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT	N/A
25	G203	VT/BN	0.35	IGNITION CRANK SENSE	N/A
26	G772	VT/DB	0.35	STOP/START - STATUS DISPLAY	N/A
27	N0	NA	0	NO CONNECT	N/A
28	G771	VT/DG	0.35	STOP START NEUTRAL SW SIG	N/A
29	G774	VT/DG	0.35	SENSOR GROUND	N/A
30	G16	VT/BG	0.50	IMMOBILIZER ANTENNA SIGNAL	N/A
31	N0	NA	0	NO CONNECT	N/A
32	D404	WH/BN	0.35	LIN BUS	N/A
33	N0	NA	0	NO CONNECT	N/A
34	N0	NA	0	NO CONNECT	N/A
35	N0	NA	0	NO CONNECT	N/A
36	L2	WH/BU	0.35	HAZARD GROUND	N/A
37	N0	NA	0	NO CONNECT	N/A
38	N0	NA	0	NO CONNECT	N/A
39	G228	VT/BK	0.50	GROUND	N/A
40	W113	BN/YE	0.35	REAR WIPER SWITCH MUX	N/A
41	G200	VT/BN	0.50	MEMORY SELECT SWITCH MUX	N/A
42	L307	WH/BN	0.35	HEADLAMP SWITCH MUX	N/A
43	E2	OG/BN	0.35	PANEL LAMPS DRIVER	N/A
44	D402	OG/VT	0.35	LIN BUS CBC 2	N/A
45	N0	NA	0	NO CONNECT	N/A
46	F944	PK/GN	0.35	FUSED IGNITION	N/A
47	N0	NA	0	NO CONNECT	N/A
48	M33	YE/BN	0.50	DOOR AMBIENT LAMP FEED DRIV	N/A
49	N0	NA	0	NO CONNECT	N/A
50	N0	NA	0	NO CONNECT	N/A
51	L900	WH/YE	0.35	HEADLAMP SWITCH MUX RETURN	N/A
52	N0	NA	0	NO CONNECT	N/A
53	N0	NA	0	NO CONNECT	N/A
54	G920	VT/YE	0.50	MEMORY SELECT SWITCH RETURN	N/A
55	W114	BN/WH	0.35	FRONT WIPER WASHER SWITCH SIGNAL	N/A
56	N0	NA	0	NO CONNECT	N/A
57	E3	OG/YE	0.35	PANEL LAMPS DRIVER	N/A
58	W52	BN/YE	0.50	FRONT WIPER SWITCH MUX	N/A
59	L91	WH/DB	0.35	HAZARD SWITCH SENSE	N/A
60	N0	NA	0	NO CONNECT	N/A
