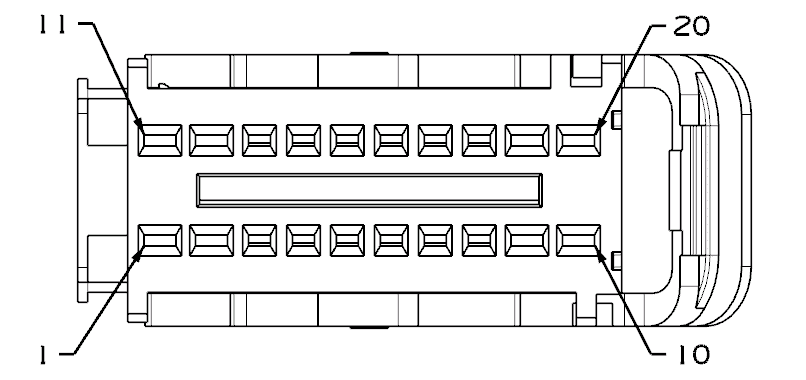

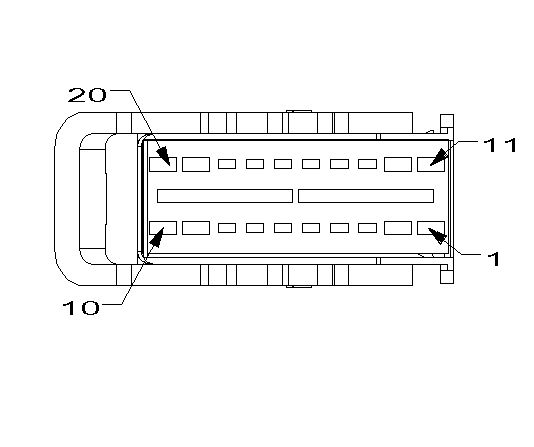

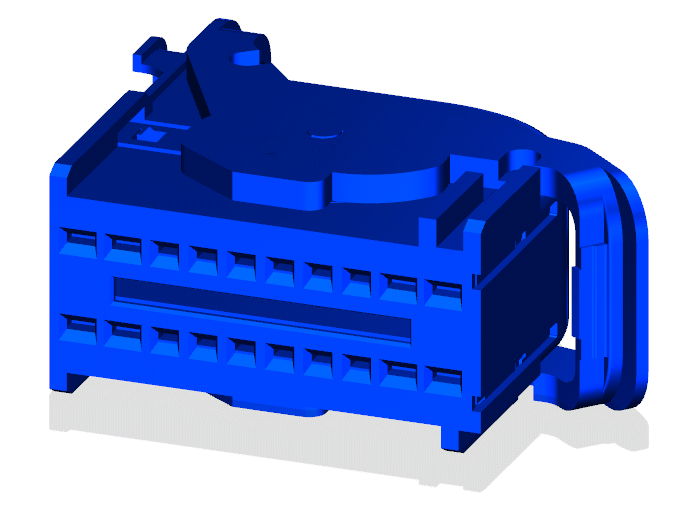

Module-Body Control C7 (Standard) Connector End View (D2762G)

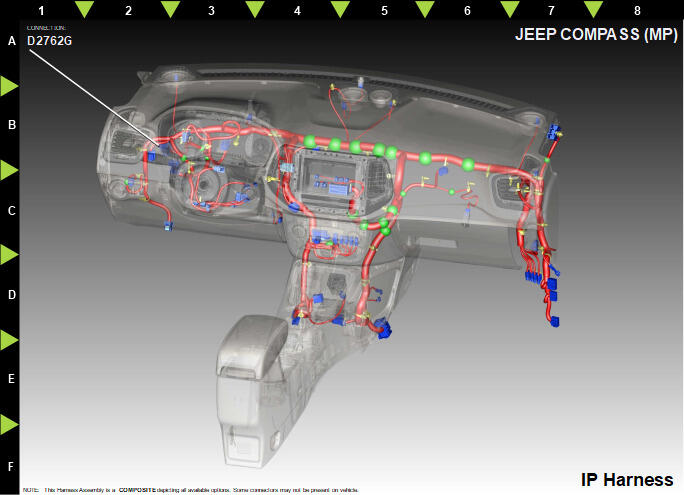

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 15471055_15471039

Part Description: Not Available

Connector No: D2762G

Option: Standard

Repair Kit Part Number: 68335234AA

Cavity Count: 20

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z937	BK/VT	1.5	GROUND	PREMIUM
2	N0	NA	0	NO CONNECT	N/A
3	F201	PK/OG	0.50	FUSED IGNITION RUN/START CONTROL OUTPUT	N/A
4	M59	YE/GN	0.50	COURTESY LAMP FEED	N/A
5	A938	RD	0.35	FUSED B(+)	N/A
6	A938	RD	0.35	FUSED B(+)	N/A
7	N0	NA	0	NO CONNECT	N/A
8	F944	PK/GN	0.35	FUSED IGNITION	N/A
9	N0	NA	0	NO CONNECT	N/A
10	A910	RD	1.0	FUSED B(+)	N/A
11	Z937	BK/VT	1.5	GROUND	PREMIUM
12	F948	PK/GN	0.35	FUSED IGNITION	N/A
13	F948	PK/GN	0.35	FUSED IGNITION	N/A
14	F948	PK/GN	0.50	FUSED IGNITION	N/A
15	F948	PK/GN	0.50	FUSED IGNITION	N/A
16	N0	NA	0	NO CONNECT	N/A
17	F949	PK/GN	0.35	FUSED IGNITION	N/A
18	A910	RD	1.0	FUSED B(+)	N/A
19	F925	PK/YE	0.75	FUSED IGNITION RUN CONTROL OUTPUT	N/A
20	N0	NA	0	NO CONNECT	N/A
