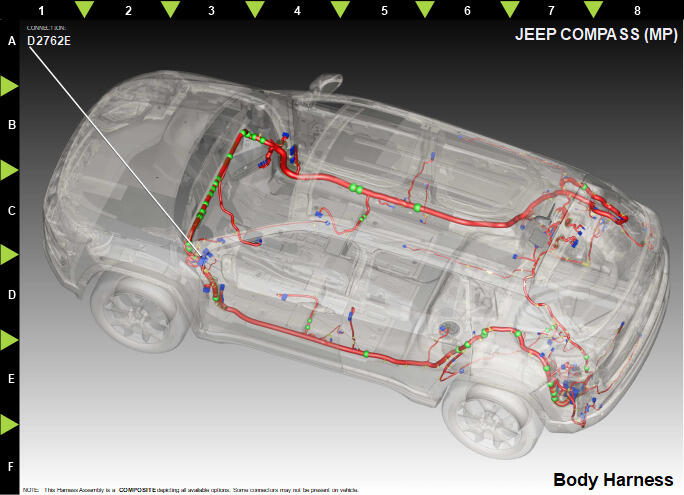

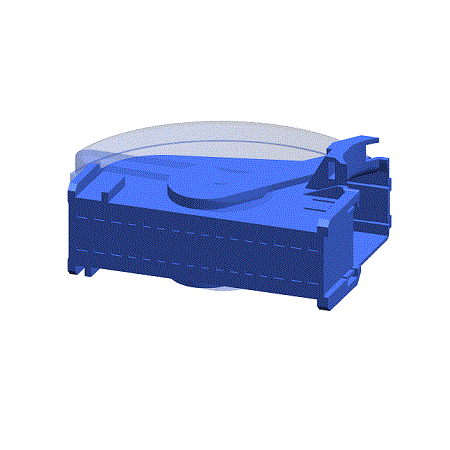

Module-Body Control C5 (Standard) Connector End View (D2762E)

Harness-Family: Body

Color: GREEN

Gender: FEMALE

Part Number: 13894859

Part Description: Not Available

Connector No: D2762E

Option: Standard

Repair Kit Part Number: Not Available

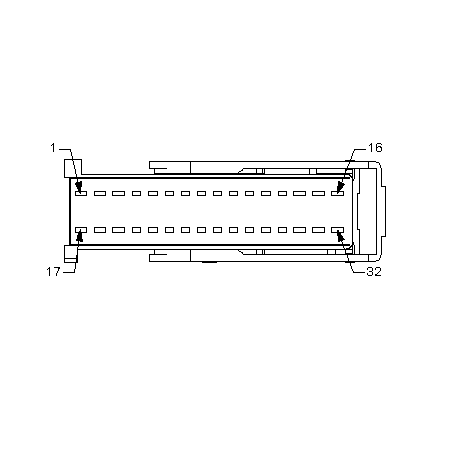

Cavity Count: 32

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P778	GN/BU	1.0	DOOR LOCK RELAY OUTPUT	N/A
2	F515	PK/BU	2.0	DRIVER WINDOW HALL SENSOR SUPPLY	N/A
3	P303	BG	1.0	PASSENGER DOOR UNLOCK DRIVER	N/A
4	A910	RD	1.0	FUSED B(+)	N/A
5	N0	NA	0	NO CONNECT	N/A
6	M59	YE/GN	0.35	COURTESY LAMP FEED	N/A
7	M59	YE/GN	0.35	COURTESY LAMP FEED	N/A
8	M59	YE/GN	0.35	COURTESY LAMP FEED	N/A
9	M59	YE/GN	0.50	COURTESY LAMP FEED	N/A
10	P371	BG/BN	0.50	DOOR LOCK SW RTN DRIV	N/A
11	F944	PK/GN	0.50	FUSED IGNITION	N/A
12	F944	PK/GN	0.50	FUSED IGNITION	N/A
13	N0	NA	0	NO CONNECT	N/A
14	N0	NA	0	NO CONNECT	N/A
15	N0	NA	0	NO CONNECT	N/A
16	Q211	BG/BU	2.0	DRIVER REAR WINDOW DRIVER (DOWN)	N/A
17	P31	BG/YE	0.75	DECKLID/LIFTGATE RELEASE DRIVER	N/A
18	P1	BG/GN	1.0	DRIVER DOOR UNLOCK DRIVER	N/A
19	F516	PK	2.0	PASSENGER WINDOW HALL SENSOR SUPPLY	N/A
20	W13	BN/GN	1.5	REAR WIPER MOTOR CONTROL	N/A
21	N0	NA	0	NO CONNECT	N/A
22	N0	NA	0	NO CONNECT	N/A
23	F948	PK/GN	0.35	FUSED IGNITION	N/A
24	F948	PK/GN	0.35	FUSED IGNITION	N/A
25	F948	PK/GN	0.35	FUSED IGNITION	N/A
26	F925	PK/YE	0.75	FUSED IGNITION RUN CONTROL OUTPUT	N/A
27	N0	NA	0	NO CONNECT	N/A
28	N0	NA	0	NO CONNECT	N/A
29	N0	NA	0	NO CONNECT	N/A
30	Q111	BG/YE	2.0	DRIVER REAR WINDOW DRIVER (UP)	N/A
31	Q112	OG/BN	2.0	PASSENGER REAR WINDOW DRIVER (UP)	N/A
32	Q212	OG/VT	2.0	PASSENGER REAR WINDOW DRIVER (DOWN)	N/A
