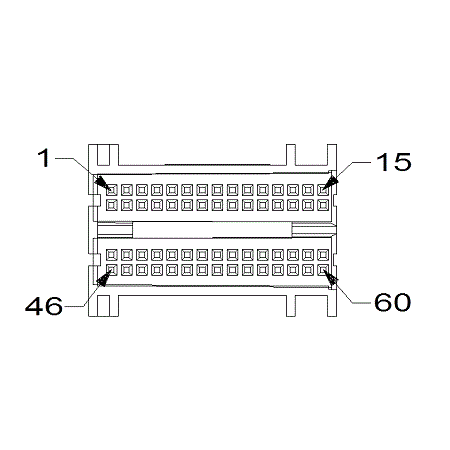

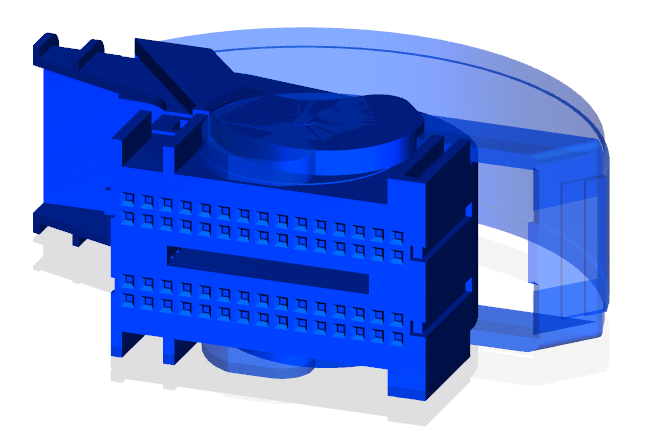

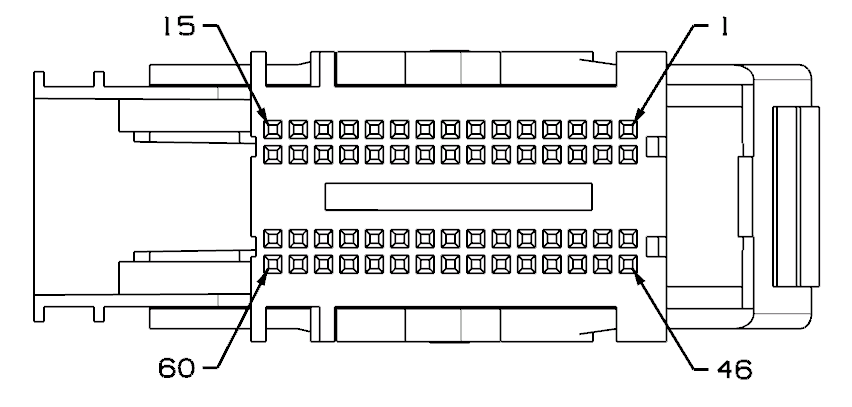

Module-Body Control C4 (Standard) Connector End View (D2762D)

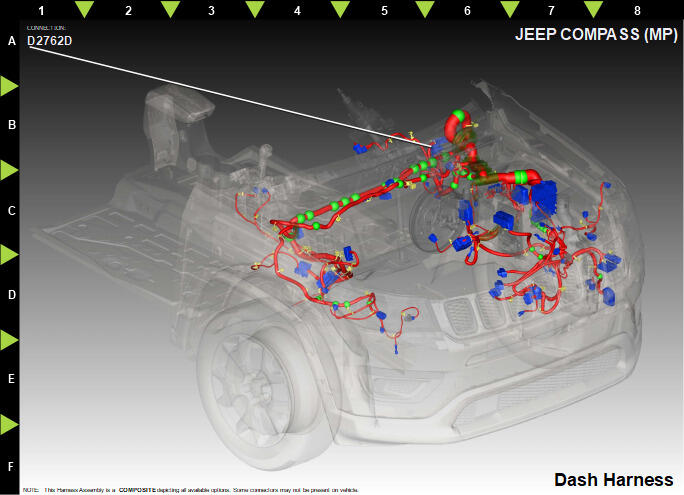

Harness-Family: Dash
Color: BLACK
Gender: FEMALE
Part Number: 15482409_15482404
Part Description: Not Available
Connector No: D2762D
Option: Standard
Repair Kit Part Number: 68266505AA
Cavity Count: 60
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | N0 | NA | 0 | NO CONNECT | N/A |
| 2 | N0 | NA | 0 | NO CONNECT | N/A |
| 3 | N0 | NA | 0 | NO CONNECT | N/A |
| 4 | N0 | NA | 0 | NO CONNECT | N/A |
| 5 | N0 | NA | 0 | NO CONNECT | N/A |
| 6 | N0 | NA | 0 | NO CONNECT | N/A |
| 7 | N0 | NA | 0 | NO CONNECT | N/A |
| 8 | G70 | VT/BU | 0.50 | HOOD AJAR SWITCH SENSE | N/A |
| 9 | N0 | NA | 0 | NO CONNECT | N/A |
| 10 | Q552 | OG/DB | 0.50 | SUNROOF ENABLE/DISABLE | N/A |
| 11 | B134 | DG/YE | 0.35 | BRAKE SIGNAL 2 | N/A |
| 12 | N0 | NA | 0 | NO CONNECT | N/A |
| 13 | L58 | WH/YE | 0.75 | LEFT DRL LAMP DRIVER | N/A |
| 14 | F944 | PK/GN | 0.35 | FUSED IGNITION | N/A |
| 15 | F944 | PK/GN | 0.35 | FUSED IGNITION | N/A |
| 16 | N0 | NA | 0 | NO CONNECT | N/A |
| 17 | N0 | NA | 0 | NO CONNECT | N/A |
| 18 | B20 | DG/OG | 0.50 | BRAKE FLUID LEVEL SIGNAL | N/A |
| 19 | W1 | BN/BG | 0.35 | WASHER SWITCH SENSE | N/A |
| 20 | N0 | NA | 0 | NO CONNECT | N/A |
| 21 | B135 | DG/GN | 0.35 | BRAKE SIGNAL 1 | N/A |
| 22 | N0 | NA | 0 | NO CONNECT | N/A |
| 23 | N0 | NA | 0 | NO CONNECT | N/A |
| 24 | N0 | NA | 0 | NO CONNECT | N/A |
| 25 | N0 | NA | 0 | NO CONNECT | N/A |
| 26 | X4 | DG/WH | 0.75 | HORN RELAY CONTROL | N/A |
| 27 | W9 | BN/VT | 0.75 | ELECTRIC WINDSHIELD WIPER DE-ICER CONTROL | N/A |
| 28 | L59 | WH/DB | 0.75 | RIGHT DRL LAMP DRIVER | N/A |
| 29 | F941 | PK/WH | 0.35 | IGNITION RUN/START CONTROL OUTPUT | N/A |
| 30 | F941 | PK/WH | 0.50 | IGNITION RUN/START CONTROL OUTPUT | N/A |
| 31 | D52 | WH/BU | 0.50 | CAN CH (+) | N/A |
| 32 | N0 | NA | 0 | NO CONNECT | N/A |
| 33 | D51 | WH/BN | 0.50 | CAN CH (-) | N/A |
| 34 | N0 | NA | 0 | NO CONNECT | N/A |
| 35 | N0 | NA | 0 | NO CONNECT | N/A |
| 36 | W7 | BN/GY | 0.50 | WIPER PARK SWITCH SENSE | N/A |
| 37 | N0 | NA | 0 | NO CONNECT | N/A |
| 38 | N0 | NA | 0 | NO CONNECT | N/A |
| 39 | W11 | BN/VT | 0.50 | LOW WASH SW RTN 1 | N/A |
| 40 | L150 | BG/GY | 0.50 | LED CONTROL SIGNAL 2 | PREMIUM LIGHTING EXCEPT DIESEL |
| 40 | N0 | NA | 0 | NO CONNECT | BASE LIGHTING EXCEPT DIESEL |
| 41 | P330 | GN/DG | 0.50 | LUMBAR RELAY CONTROL | N/A |
| 42 | P501 | GN/GY | 0.50 | DRIVER MIRROR TURN SIGNAL DRIVER | N/A |
| 43 | N0 | NA | 0 | NO CONNECT | N/A |
| 44 | L61 | WH/GN | 0.50 | LEFT FRONT TURN LAMP DRIVER | N/A |
| 46 | N0 | NA | 0 | NO CONNECT | N/A |
| 47 | D401 | OG | 0.35 | LIN BUS 1 | N/A |
| 48 | N0 | NA | 0 | NO CONNECT | N/A |
| 49 | C115 | DB | 0.35 | DEFOGGER RELAY CONTROL | N/A |
| 50 | N0 | NA | 0 | NO CONNECT | N/A |
| 51 | N0 | NA | 0 | NO CONNECT | N/A |
| 52 | N0 | NA | 0 | NO CONNECT | N/A |
| 53 | N0 | NA | 0 | NO CONNECT | N/A |
| 54 | N0 | NA | 0 | NO CONNECT | N/A |
| 55 | P502 | GN/DG | 0.50 | PASSENGER MIRROR TURN SIGNAL DRIVER | N/A |
| 56 | N0 | NA | 0 | NO CONNECT | N/A |
| 57 | E12 | OG/GY | 0.50 | PANEL LAMPS DRIVER | N/A |
| 58 | L60 | WH/BG | 0.50 | RIGHT FRONT TURN LAMP DRIVER | N/A |
| 59 | N0 | NA | 0 | NO CONNECT | N/A |
| 60 | F100 | PK/VT | 0.50 | FUSED IGNITION RUN CONTROL OUTPUT | N/A |
