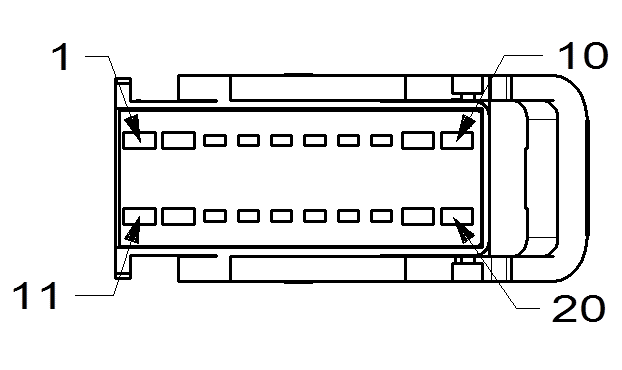

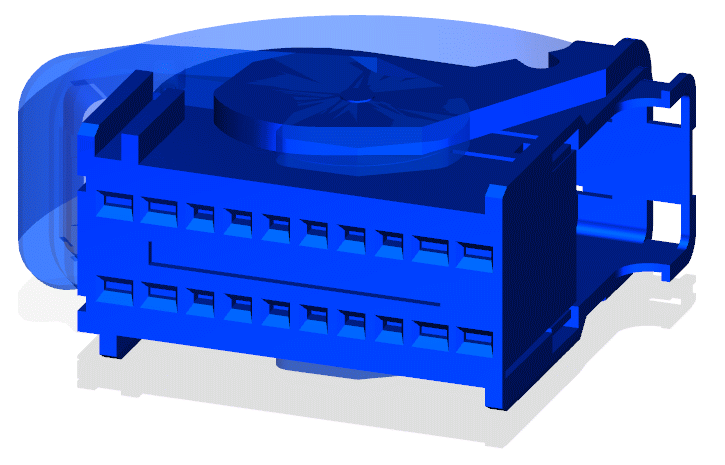

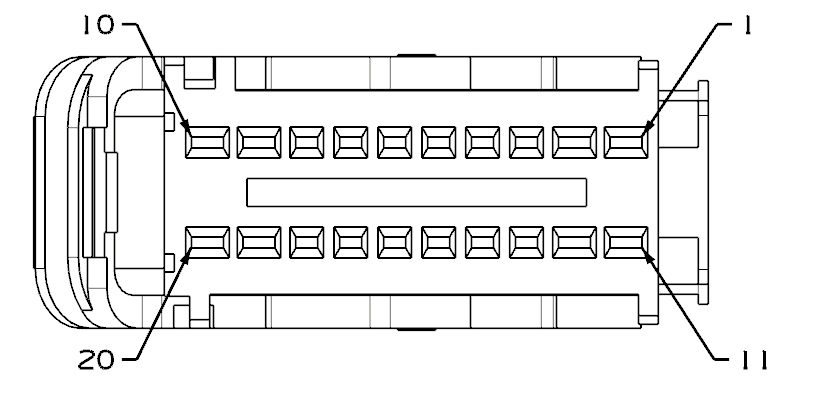

Module-Body Control C3 (Standard) Connector End View (D2762C)

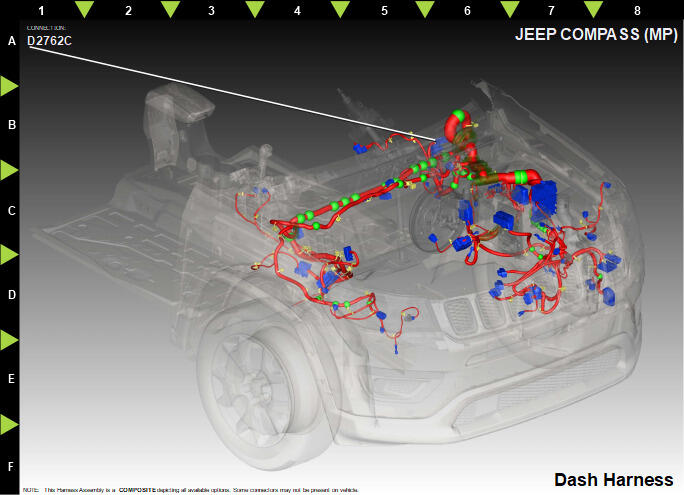

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 15471053_15471039

Part Description: Not Available

Connector No: D2762C

Option: Standard

Repair Kit Part Number: 68335198AA

Cavity Count: 20

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F45	PK/OG	2.5	FUSED IGNITION SWITCH OUTPUT (START)	N/A
2	W10	BN	1.0	FRONT WASHER PUMP MOTOR CONTROL	N/A
3	L44	WH/BG	1.0	RIGHT LOW BEAM DRIVER	EXCEPT HID
3	L310	BG/WH	1.5	RIGHT HEADLAMP RELAY CONTROL	HID
4	L33	WH/GN	1.0	HIGH BEAM FEED	N/A
5	L34	WH/GY	1.0	RIGHT HIGH BEAM DRIVER	N/A
6	L89	WH/YE	1.0	LEFT FRONT FOG LAMP CONTROL	N/A
7	L90	WH/OG	1.0	RIGHT FRONT FOG LAMP CONTROL	N/A
8	F944	PK/GN	0.75	FUSED IGNITION	N/A
9	W3	BN/WH	2.5	WIPER LOW SPEED CONTROL OUTPUT	N/A
10	W4	BN/OG	2.5	WIPER HIGH SPEED CONTROL OUTPUT	N/A
11	L311	BG	1.5	LEFT HEADLAMP RELAY CONTROL	HID
11	L43	WH/DB	1.0	LEFT LOW BEAM DRIVER	EXCEPT HID
12	W20	BN/YE	1.0	REAR WASHER PUMP MOTOR CONTROL	N/A
13	A910	RD	1.0	FUSED B(+)	N/A
14	A910	RD	0.75	FUSED B(+)	N/A
15	F949	PK/GN	0.75	FUSED IGNITION	N/A
16	F949	PK/GN	0.50	FUSED IGNITION	N/A
17	F944	PK/GN	0.35	FUSED IGNITION	N/A
18	F944	PK/GN	0.50	FUSED IGNITION	N/A
19	F741	PK/GN	1.5	FUSED IGNITION RUN/START	N/A
20	A905	RD	2.5	FUSED B(+)	N/A
