Module-Adaptive Cruise Control (Standard) Connector End View (D3098A)

Harness-Family: FRONT_END_MODULE

Color: BLACK

Gender: FEMALE

Part Number: 1-1534229-1

Part Description: Not Available

Connector No: D3098A

Option: Standard

Repair Kit Part Number: 68268737AA

Cavity Count: 8

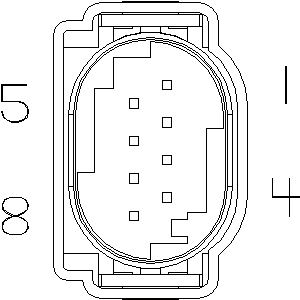

Fig 1: Module-Adaptive Cruise Control Connector End View (Standard)

Courtesy of CHRYSLER

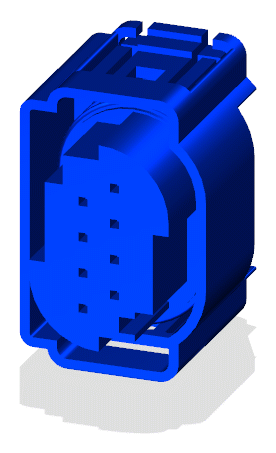

Fig 2: Module-Adaptive Cruise Control Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Adaptive Cruise Control Wire Insertion View (Standard)

Courtesy of CHRYSLER

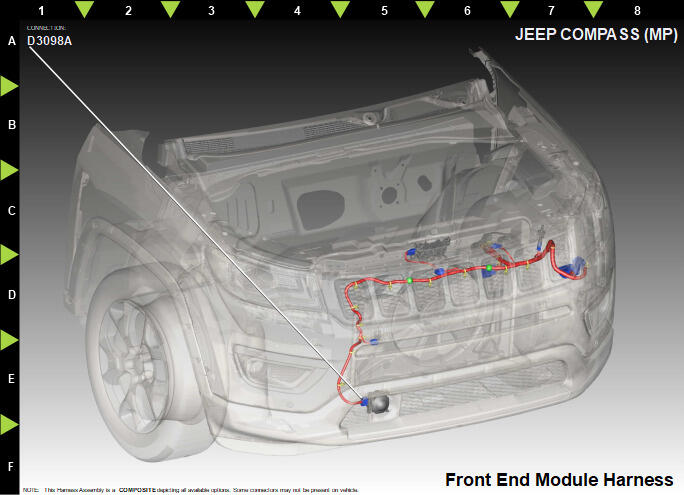

Fig 4: Module-Adaptive Cruise Control Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z907	BK	0.50	GROUND	N/A
2	D249	YE/GY	0.50	CAN C (+)	N/A
3	D248	YE	0.50	CAN C (-)	N/A
4	N0	NA	0	NO CONNECT	N/A
5	D449	WH/BG	0.50	PRIVATE CAN (+)	N/A
6	D448	BG	0.50	PRIVATE CAN (-)	N/A
7	N0	NA	0	NO CONNECT	N/A
8	F949	PK/GN	0.50	FUSED IGNITION	N/A
