Can Bus Splice Block 9 (Standard) Connector End View (D3205A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 7182-9633-40_7283-8856-30

Part Description: Not Available

Connector No: D3205A

Option: Standard

Repair Kit Part Number: 68601819AA

Cavity Count: 10

Fig 1: Can Bus Splice Block 9 Connector End View (Standard)
GCWD1288800Courtesy of CHRYSLER
Fig 2: Can Bus Splice Block 9 Isometric View (Standard)
GCWD1323640Courtesy of CHRYSLER
Fig 3: Can Bus Splice Block 9 Wire Insertion View (Standard)
GCWD1323047Courtesy of CHRYSLER

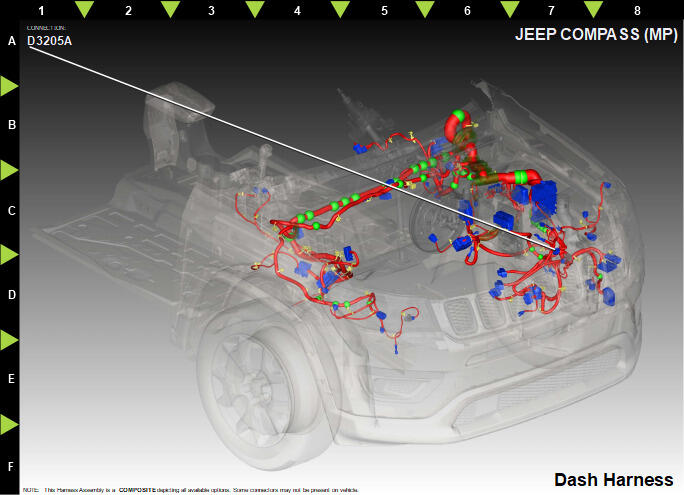

Fig 4: Can Bus Splice Block 9 Component Location View (Standard)
GCWD1323394Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D1 BG/WH 0.50 CAN C (+) N/A
2 D1 BG/WH 0.50 CAN C (+) N/A
3 N0 NA 0 NO CONNECT N/A
4 D2 YE 0.50 CAN C (-) N/A
5 D2 YE 0.50 CAN C (-) N/A
6 D29 VT/WH 0.50 CAN C (+) N/A
7 D37 BN/YE 0.35 CAN C (+) N/A
8 N0 NA 0 NO CONNECT N/A
9 D30 YE 0.50 CAN C (-) N/A
10 D38 YE 0.35 CAN C (-) N/A
