Can Bus Splice Block 6 (Standard) Connector End View (D3202A)

Harness-Family: FASCIA_REAR

Color: BLACK

Gender: FEMALE

Part Number: 7182-9633-40_7283-8856-30

Part Description: Not Available

Connector No: D3202A

Option: Standard

Repair Kit Part Number: 68601819AA

Cavity Count: 10

Fig 1: Can Bus Splice Block 6 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Can Bus Splice Block 6 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Can Bus Splice Block 6 Wire Insertion View (Standard)

Courtesy of CHRYSLER

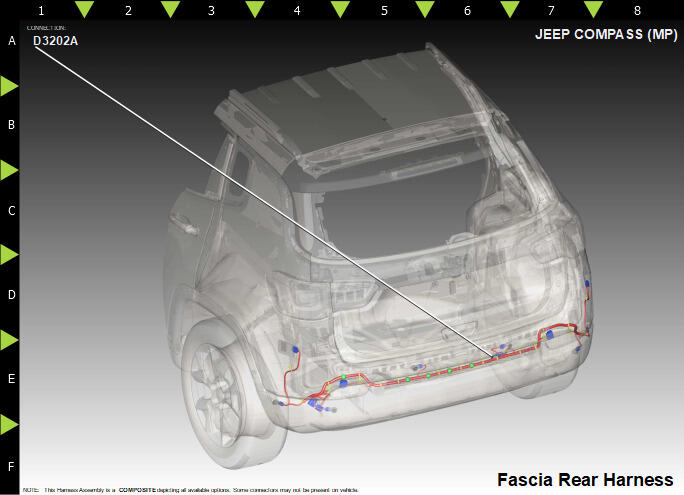

Fig 4: Can Bus Splice Block 6 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D17	OG	0.50	CAN IHS (+)	N/A
2	D17	OG	0.50	CAN IHS (+)	N/A
3	N0	NA	0	NO CONNECT	N/A
4	D18	WH/OG	0.50	CAN IHS (-)	N/A
5	D18	WH/OG	0.50	CAN IHS (-)	N/A
6	D215	DB/WH	0.50	CAN IHS (+)	N/A
7	D217	DG/WH	0.50	CAN IHS (+)	N/A
8	N0	NA	0	NO CONNECT	N/A
9	D216	WH	0.50	CAN IHS (-)	N/A
10	D218	WH	0.50	CAN IHS (-)	N/A
