Can Bus Splice Block 5 (Standard) Connector End View (D3201A)

Harness-Family: Body

Color: NATURAL

Gender: FEMALE

Part Number: 7187-8856_7388-0317-60

Part Description: Not Available

Connector No: D3201A

Option: Standard

Repair Kit Part Number: 68502124AA

Cavity Count: 18

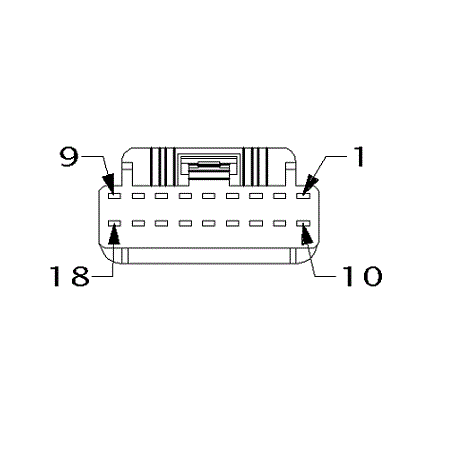

Fig 1: Can Bus Splice Block 5 Connector End View (Standard)

Courtesy of CHRYSLER

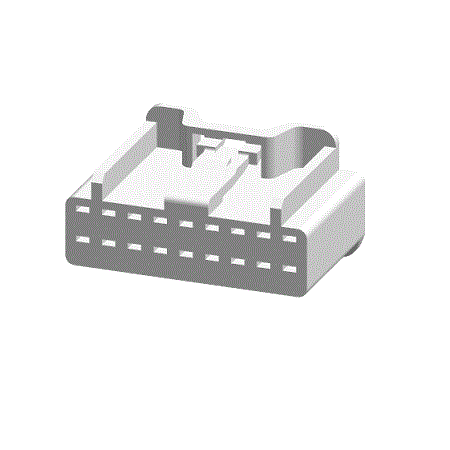

Fig 2: Can Bus Splice Block 5 Isometric View (Standard)

Courtesy of CHRYSLER

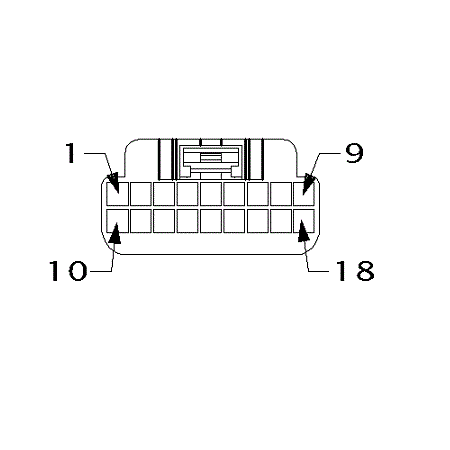

Fig 3: Can Bus Splice Block 5 Wire Insertion View (Standard)

Courtesy of CHRYSLER

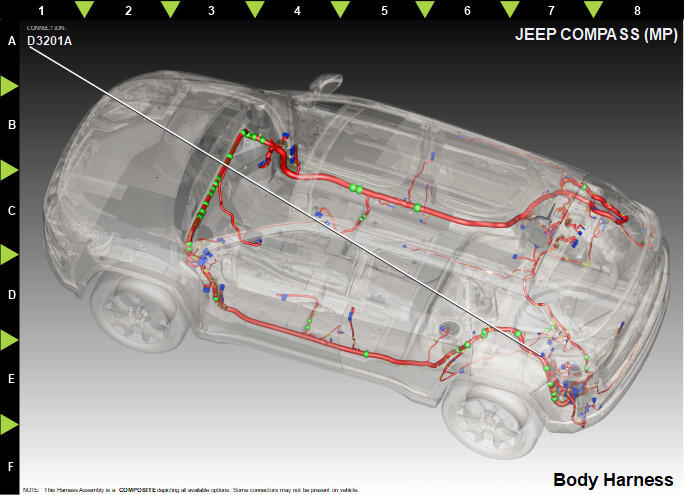

Fig 4: Can Bus Splice Block 5 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D17	OG	0.50	CAN IHS (+)	N/A
2	D17	OG	0.50	CAN IHS (+)	N/A
3	D251	WH/OG	0.50	CAN IHS (+)	N/A
4	D191	BN/OG	0.50	CAN IHS (+)	N/A
5	D207	WH/GN	0.50	CAN IHS (+)	N/A
6	N0	NA	0	NO CONNECT	N/A
7	D3	DB	0.50	CAN CH (+)	N/A
8	D3	DB	0.50	CAN CH (+)	N/A
9	D77	VT	0.50	CAN CH (+)	N/A
10	D18	WH/OG	0.50	CAN IHS (-)	N/A
11	D18	WH/OG	0.50	CAN IHS (-)	N/A
12	D250	WH	0.50	CAN IHS (-)	N/A
13	D192	WH/OG	0.50	CAN IHS (-)	N/A
14	D206	WH	0.50	CAN IHS (-)	N/A
15	N0	NA	0	NO CONNECT	N/A
16	D4	YE	0.50	CAN CH (-)	N/A
17	D4	YE	0.50	CAN CH (-)	N/A
18	D78	YE	0.50	CAN CH (-)	N/A
