Can Bus Splice Block 19 (Standard) Connector End View (D3215A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 7283-8850-30_7182-9630-30

Part Description: Not Available

Connector No: D3215A

Option: Standard

Repair Kit Part Number: 68490874AA

Cavity Count: 6

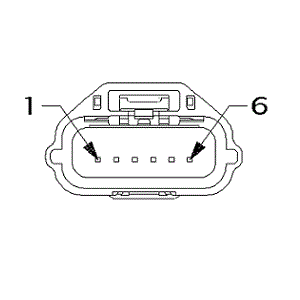

Fig 1: Can Bus Splice Block 19 Connector End View (Standard)

Courtesy of CHRYSLER

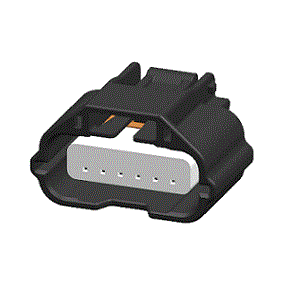

Fig 2: Can Bus Splice Block 19 Isometric View (Standard)

Courtesy of CHRYSLER

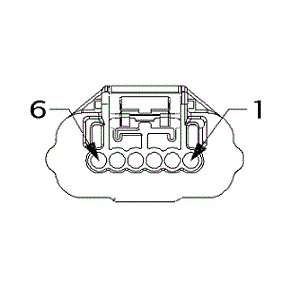

Fig 3: Can Bus Splice Block 19 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Can Bus Splice Block 19 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D1	BG/WH	0.50	CAN C (+)	N/A
2	D1	BG/WH	0.50	CAN C (+)	N/A
3	D305	DB/WH	0.50	CAN C (+)	N/A
4	D2	YE	0.50	CAN C (-)	N/A
5	D2	YE	0.50	CAN C (-)	N/A
6	D306	YE	0.50	CAN C (-)	N/A
