Can Bus Splice Block 15 (Standard) Connector End View (D3211A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 7182-9633-40_7283-8856-30

Part Description: Not Available

Connector No: D3211A

Option: Standard

Repair Kit Part Number: 68601819AA

Cavity Count: 10

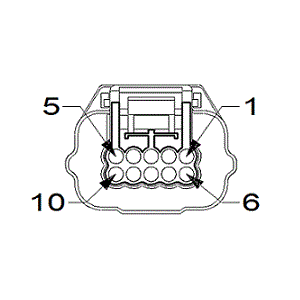

Fig 1: Can Bus Splice Block 15 Connector End View (Standard)

Courtesy of CHRYSLER

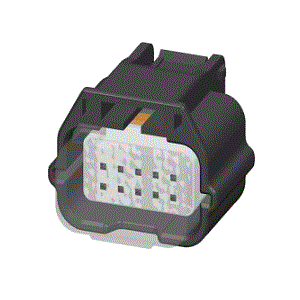

Fig 2: Can Bus Splice Block 15 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Can Bus Splice Block 15 Wire Insertion View (Standard)

Courtesy of CHRYSLER

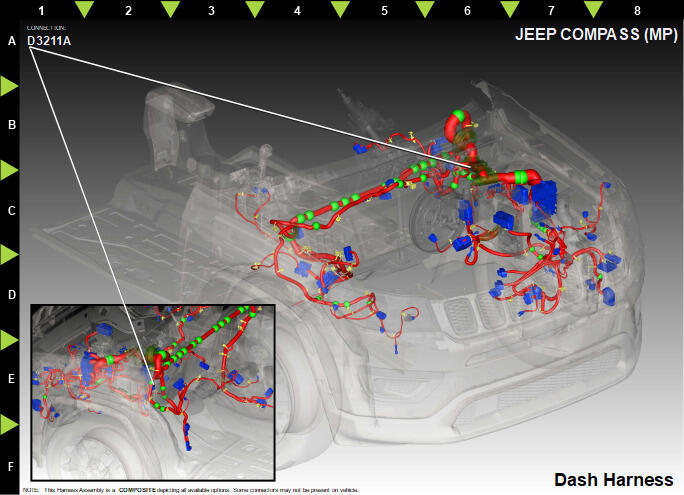

Fig 4: Can Bus Splice Block 15 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D497	DB/WH	0.35	CAN CH (+)	N/A
2	D3	DB	0.50	CAN CH (+)	N/A
3	N0	NA	0	NO CONNECT	N/A
4	D498	YE	0.35	CAN CH (-)	N/A
5	D4	YE	0.50	CAN CH (-)	N/A
6	D139	YE/BN	0.50	CAN CH (+)	N/A
7	D52	WH/BU	0.50	CAN CH (+)	N/A
8	N0	NA	0	NO CONNECT	N/A
9	D138	YE	0.50	CAN CH (-)	N/A
10	D51	WH/BN	0.50	CAN CH (-)	N/A
