Assembly-Power Distribution Center-Rear C2 (Standard) Connector End View (D6631B)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 0300390

Part Description: Not Available

Connector No: D6631B

Option: Standard

Repair Kit Part Number: 68502137AA

Cavity Count: 2

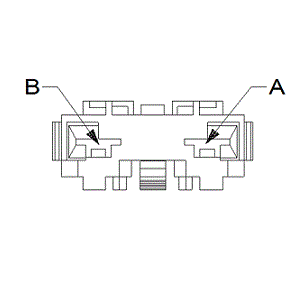

Fig 1: Assembly-Power Distribution Center-Rear C2 Connector End View (Standard)
GCWD1010792Courtesy of CHRYSLER

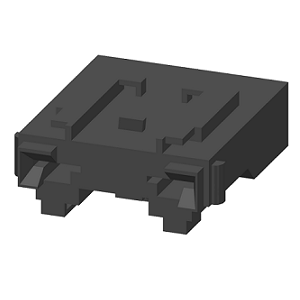

Fig 2: Assembly-Power Distribution Center-Rear C2 Isometric View (Standard)
GCWD1011733Courtesy of CHRYSLER

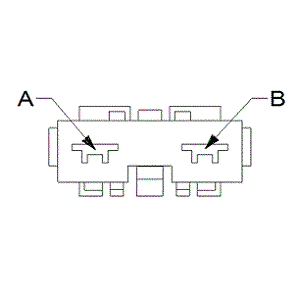

Fig 3: Assembly-Power Distribution Center-Rear C2 Wire Insertion View (Standard)
GCWD1006710Courtesy of CHRYSLER

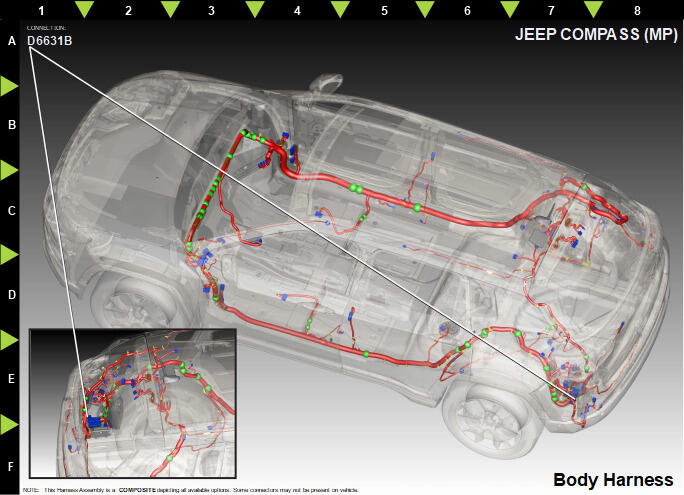

Fig 4: Assembly-Power Distribution Center-Rear C2 Component Location View (Standard)
GCWD1323550Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A A906 RD/GY 4.0 FUSED B(+) N/A
B A111 DG/RD 2.0 FUSED B(+) N/A
