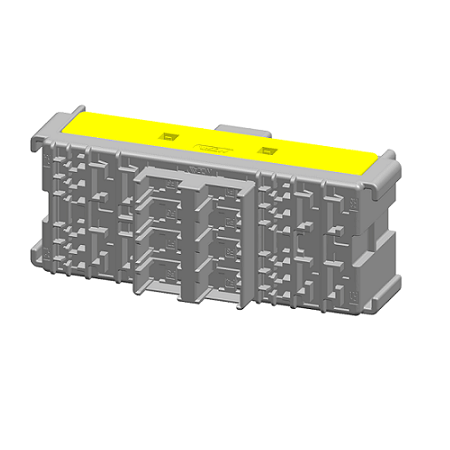

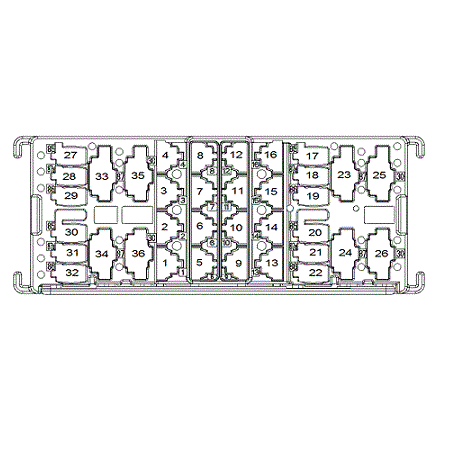

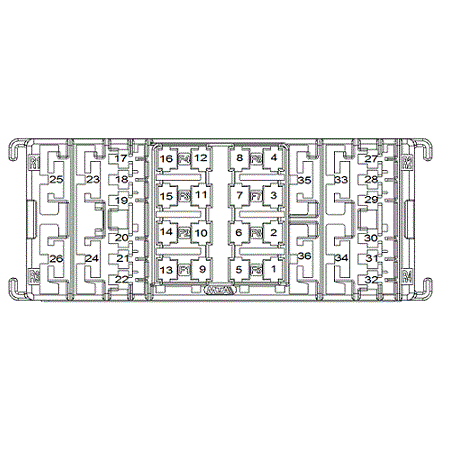

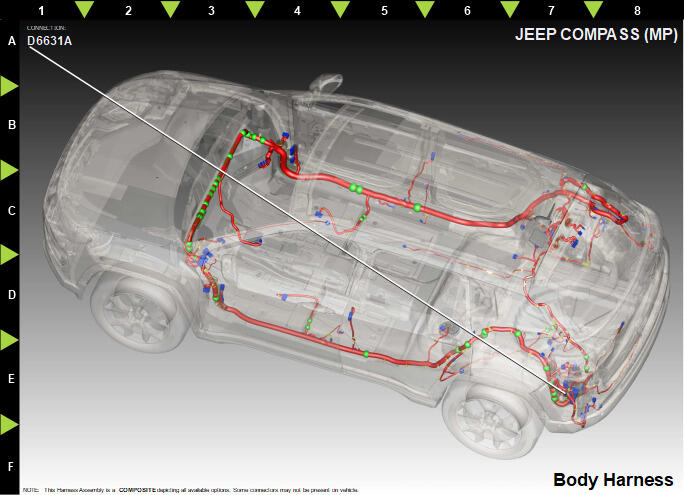

Assembly-Power Distribution Center-Rear C1 (Standard) Connector End View (D6631A)

Harness-Family: Body

Color: GRAY

Gender: FEMALE

Part Number: 0301564_0301566

Part Description: Not Available

Connector No: D6631A

Option: Standard

Repair Kit Part Number: 68502136AA

Cavity Count: 36

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P9	GN/OG	2.0	SEAT SWITCH B(+) SUPPLY	N/A
2	P103	GN/PK	0.50	DRIVER LUMBAR MOTOR DRIVER	N/A
3	F945	PK/GN	0.75	FUSED IGNITION	N/A
4	F943	PK/GN	1.5	FUSED IGNITION	N/A
5	P690	RD/GN	2.5	FUSED IGNITION RUN CONTROL OUTPUT	N/A
6	P690	RD/GN	2.5	FUSED IGNITION RUN CONTROL OUTPUT	N/A
7	F946	PK/GN	2.5	FUSED IGNITION RUN/START CONTROL OUTPUT	N/A
8	F946	PK/GN	2.5	FUSED IGNITION RUN/START CONTROL OUTPUT	N/A
9	A906	RD/GY	2.5	FUSED B(+)	N/A
10	A906	RD/GY	2.5	FUSED B(+)	N/A
11	A906	RD/GY	2.5	FUSED B(+)	N/A
12	A906	RD/GY	2.5	FUSED B(+)	N/A
13	A401	RD/GN	2.0	FUSED B(+)	N/A
14	A942	RD	2.0	FUSED B(+)	N/A
15	A130	VT/RD	4.0	FUSED B(+)	N/A
16	A720	VT/RD	2.0	FUSED B(+)	N/A
17	N0	NA	0	NO CONNECT	N/A
18	N0	NA	0	NO CONNECT	N/A
19	N0	NA	0	NO CONNECT	N/A
20	Z943	BK/GY	0.50	GROUND	N/A
21	N0	NA	0	NO CONNECT	N/A
22	P330	GN/DG	0.50	LUMBAR RELAY CONTROL	N/A
23	N0	NA	0	NO CONNECT	N/A
24	P690	RD/GN	2.5	FUSED IGNITION RUN CONTROL OUTPUT	N/A
25	N0	NA	0	NO CONNECT	N/A
26	A906	RD/GY	4.0	FUSED B(+)	N/A
27	Z943	BK/GY	0.50	GROUND	N/A
28	N0	NA	0	NO CONNECT	N/A
29	P330	GN/DG	0.50	LUMBAR RELAY CONTROL	N/A
30	Z943	BK/GY	0.50	GROUND	N/A
31	N0	NA	0	NO CONNECT	N/A
32	F948	PK/GN	0.35	FUSED IGNITION	N/A
33	P8	GN/RD	2.5	FUSED B(+)	N/A
34	F946	PK/GN	2.5	FUSED IGNITION RUN/START CONTROL OUTPUT	N/A
35	A720	VT/RD	2.0	FUSED B(+)	N/A
36	A906	RD/GY	4.0	FUSED B(+)	N/A
