Module-Steering Column Control C6 (Standard) Connector End View (D3816F)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 33401180

Part Description: Not Available

Connector No: D3816F

Option: Standard

Repair Kit Part Number: 68502127AA

Cavity Count: 2

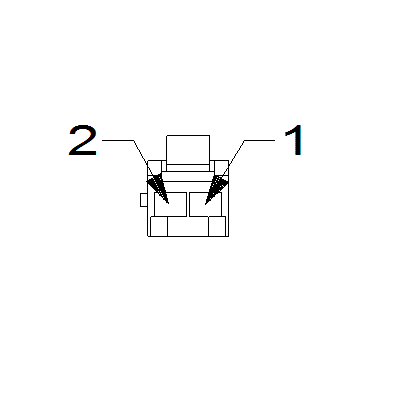

Fig 1: Module-Steering Column Control C6 Connector End View (Standard)

Courtesy of CHRYSLER

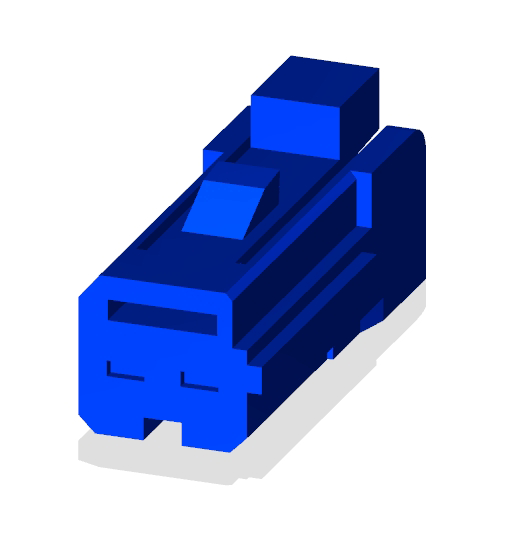

Fig 2: Module-Steering Column Control C6 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Steering Column Control C6 Wire Insertion View (Standard)

Courtesy of CHRYSLER

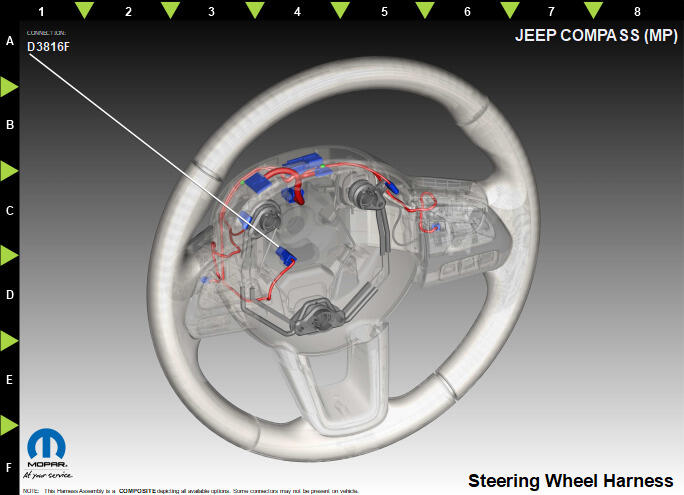

Fig 4: Module-Steering Column Control C6 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	C91	RD	0.75	HEATED STEERING WHEEL FEED	N/A
2	C986	BK	0.75	HEATED STEERING WHEEL RETURN	N/A
