Module-Steering Column Control C1 (Standard) Connector End View (D3816A)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 33120610

Part Description: Not Available

Connector No: D3816A

Option: Standard

Repair Kit Part Number: 68502125AA

Cavity Count: 6

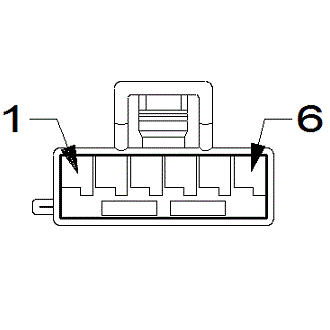

Fig 1: Module-Steering Column Control C1 Connector End View (Standard)

Courtesy of CHRYSLER

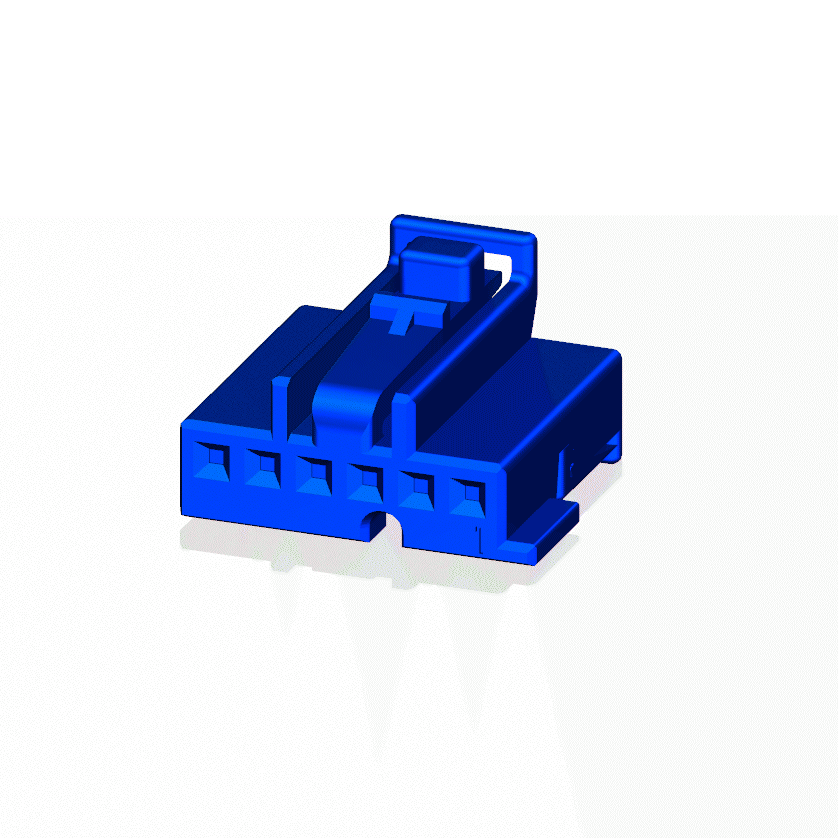

Fig 2: Module-Steering Column Control C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Steering Column Control C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Steering Column Control C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	EXCEPT EXPORT
2	N0	NA	0	NO CONNECT	EXCEPT EXPORT
3	R63	DB/WH	0.50	DRIVER SQUIB 2 LINE 1	N/A
4	R61	GN/VT	0.50	DRIVER SQUIB 2 LINE 2	N/A
5	R45	GN/OG	0.50	DRIVER SQUIB 1 LINE 1	N/A
6	R43	BU/BN	0.50	DRIVER SQUIB 1 LINE 2	N/A
