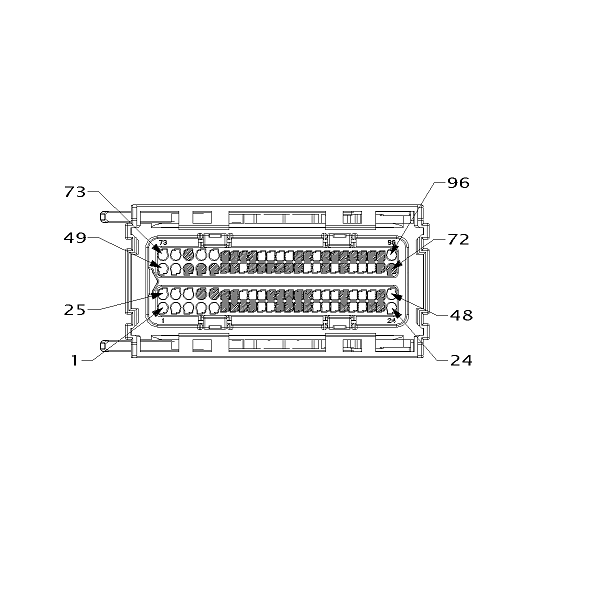

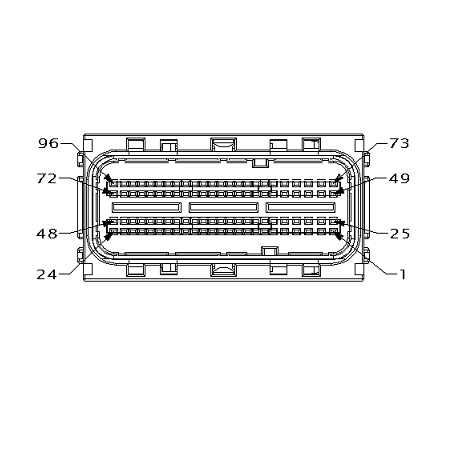

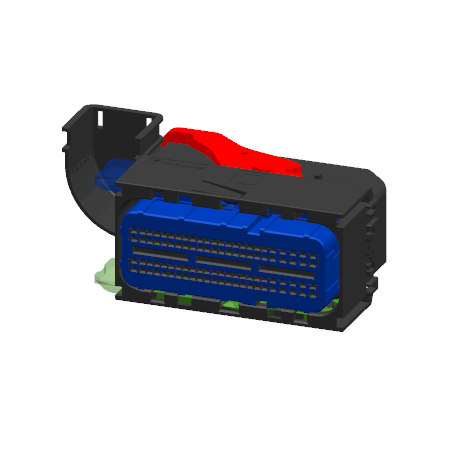

Module-Powertrain Control C2 (Except Ess) Connector End View (D3821B)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 2098489-1_2098865-4

Part Description: Not Available

Connector No: D3821B

Option: EXCEPT ESS

Repair Kit Part Number: Not Available

Cavity Count: 96

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N35	VT	1.0	LOW SIDE CONTROL	N/A
2	N36	DB/PK	1.0	HIGH SIDE CONTROL	N/A
3	N37	DB	1.0	LOW SIDE CONTROL	N/A
4	N38	DG/PK	1.0	HIGH SIDE CONTROL	N/A
5	N39	DG	1.0	LOW SIDE CONTROL	N/A
10	K2	VT/OG	0.35	ECT SIGNAL	N/A
11	K1	VT/BN	0.50	MAP SIGNAL	N/A
16	K42	DB/YE	0.50	KS 1 SIGNAL	N/A
17	G6	VT/GY	0.75	EOP SIGNAL	N/A
18	K904	DB/DG	0.50	O2 RETURN (DOWNSTREAM)	N/A
20	K41	DB/BU	0.50	O2 1/1 SIGNAL	N/A
21	K902	BN/DG	0.50	O2 RETURN (UPSTREAM)	N/A
24	K447	BG/YE	0.75	ETC MOTOR (+)	N/A
25	N34	VT/PK	1.0	HIGH SIDE CONTROL	N/A
26	N33	BN	1.0	LOW SIDE CONTROL	N/A
27	N32	BN/PK	1.0	HIGH SIDE CONTROL	N/A
32	A804	RD/VT	0.50	GEN SENSE	N/A
33	G24	VT/BN	0.50	EOT SIGNAL	N/A
34	K915	BN/WH	0.50	SENSOR GROUND	N/A
40	K942	BN/GN	0.50	KS 1 RETURN	N/A
41	K103	BN/BU	0.50	O2 1/1 PUMP CELL CURRENT TRIM	N/A
42	K141	DB/YE	0.50	O2 1/2 SIGNAL	N/A
44	K89	BN/GN	0.50	O2 1/1 POSITIVE CURRENT CONTROL	N/A
45	F856	YE/PK	0.50	5 VOLT SUPPLY	N/A
46	F855	PK/YE	0.75	5 VOLT SUPPLY	N/A
48	K448	BG/OG	0.75	ETC MOTOR (-)	N/A
49	K17	DB/BG	1.0	COIL CONTROL 2	N/A
50	K19	DB/DG	1.0	COIL CONTROL 1	N/A
56	K21	DB/GN	0.75	IAT SIGNAL	N/A
63	K441	DB/BN	0.50	CMP SENSOR SIGNAL	N/A
64	K925	DB/GY	0.50	CKP GROUND	N/A
66	K900	DB/DG	0.50	SENSOR GROUND	N/A
68	K22	BN/OG	0.50	TP 1 SIGNAL	N/A
69	K122	BN/DG	0.50	TP 2 SIGNAL	N/A
70	K922	BN/DB	0.50	TP SENSOR RETURN	N/A
73	K18	DB/OG	1.0	COIL CONTROL 3	N/A
74	K15	DB/GY	1.0	COIL CONTROL 4	N/A
76	K79	BN/BU	1.0	O2 1/1 HEATER CONTROL	N/A
77	K299	BN/WH	1.0	O2 1/2 HEATER CONTROL	N/A
82	K11	BN/YE	0.75	INJECTOR CONTROL 1	N/A
83	K12	BN/DB	0.75	INJECTOR CONTROL 2	N/A
84	K13	BN/BU	0.75	INJECTOR CONTROL 3	N/A
85	K14	BN/BG	0.75	INJECTOR CONTROL 4	N/A
88	K24	BN/BU	0.75	CKP SIGNAL	N/A
96	K20	BN/GY	1.0	GEN FIELD CONTROL	N/A
