Module-Light Rain Sensor (Standard) Connector End View (D2683A)

Harness-Family: Mirror_Int_Jumper

Color: BLACK

Gender: FEMALE

Part Number: 1-1718346-1

Part Description: MQS 3P CONNECTOR

Connector No: D2683A

Option: Standard

Repair Kit Part Number: 68052579AA

Cavity Count: 3

Fig 1: Module-Light Rain Sensor Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Light Rain Sensor Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Light Rain Sensor Wire Insertion View (Standard)

Courtesy of CHRYSLER

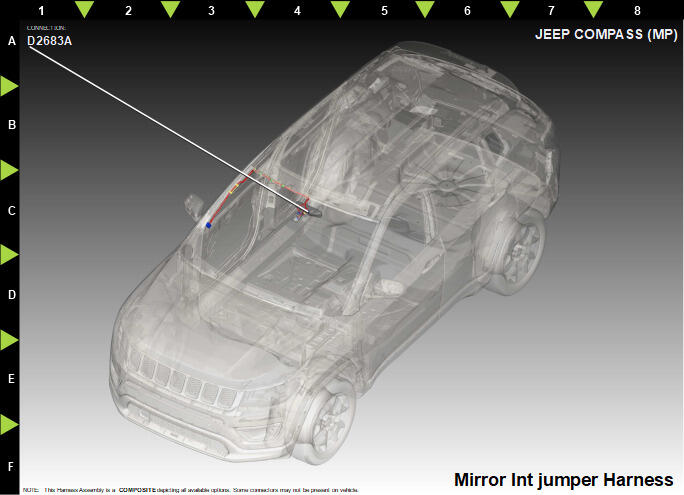

Fig 4: Module-Light Rain Sensor Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F948	PK/GN	0.35	FUSED IGNITION	N/A
2	Z930	BK	0.35	GROUND	N/A
3	D401	OG	0.35	LIN BUS 1	N/A
