Module-Global TELEMATIC Box C5 (Standard) Connector End View (D335E)

Harness-Family: IP

Color: VIOLET

Gender: FEMALE

Part Number: 1438919-8

Part Description: Not Available

Connector No: D335E

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

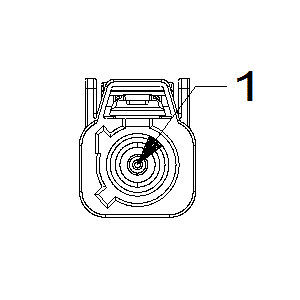

Fig 1: Module-Global Telematic Box C5 Connector End View (Standard)
GCWD1008413Courtesy of CHRYSLER
Fig 2: Module-Global Telematic Box C5 Isometric View (Standard)
GCWD1009876Courtesy of CHRYSLER

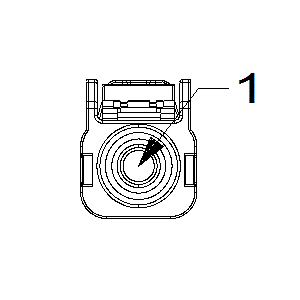

Fig 3: Module-Global Telematic Box C5 Wire Insertion View (Standard)
GCWD1008874Courtesy of CHRYSLER
Fig 4: Module-Global Telematic Box C5 Component Location View (Standard)
GCWD1323243Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 J240 BK 0.82 CABLE 4G CELL N/A
