Module-Drive Train Control C2 (Standard) Connector End View (D3872B)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: MGT001BFLPSW

Part Description: Not Available

Connector No: D3872B

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: 1

Fig 1: Module-Drive Train Control C2 Connector End View (Standard)
GCWD1012209Courtesy of CHRYSLER

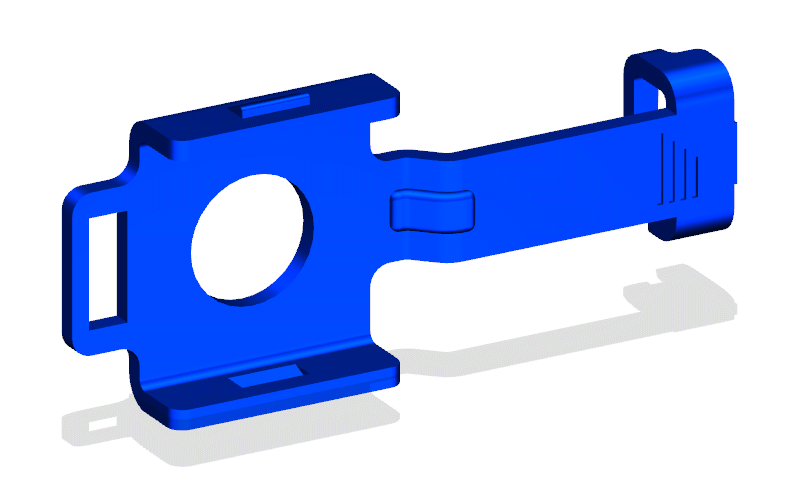

Fig 2: Module-Drive Train Control C2 Isometric View (Standard)
GCWD1013750Courtesy of CHRYSLER

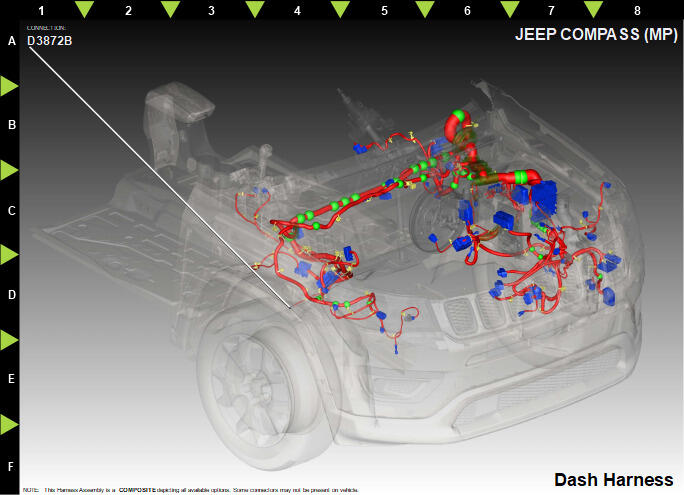

Fig 3: Module-Drive Train Control C2 Component Location View (Standard)
GCWD1323157Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z913 BK/GN 1.5 GROUND N/A
