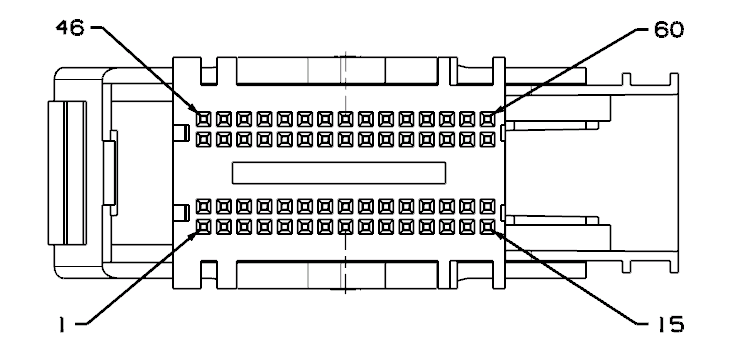

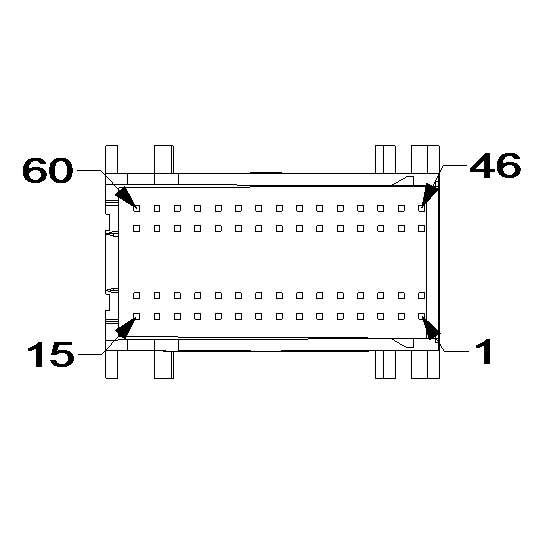

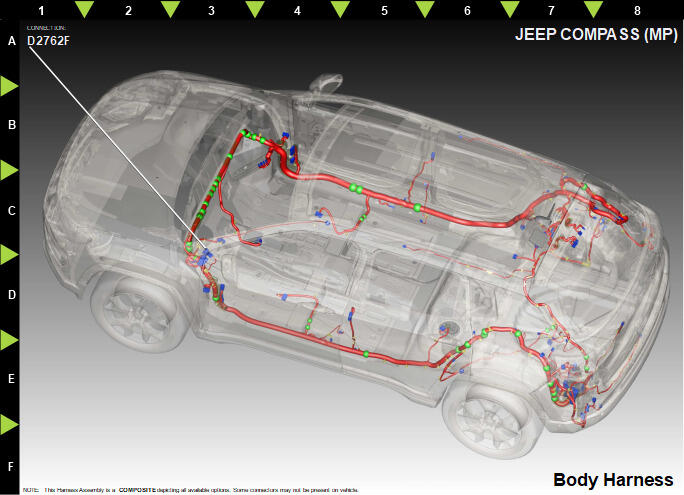

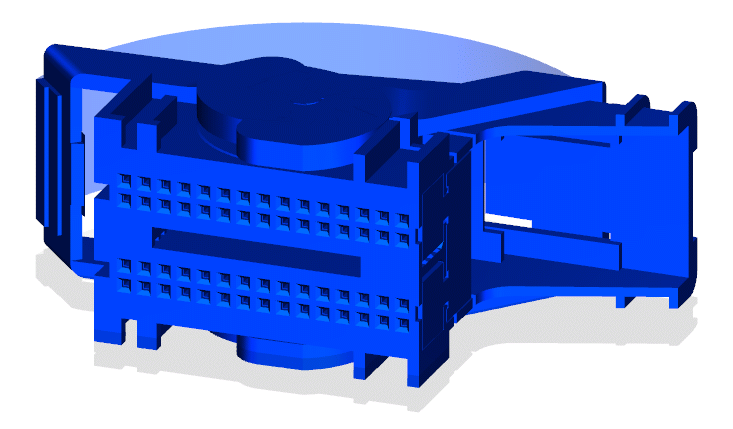

Module-Body Control C6 (Standard) Connector End View (D2762F)

Harness-Family: Body

Color: GREEN

Gender: FEMALE

Part Number: 13589779_13589780

Part Description: Not Available

Connector No: D2762F

Option: Standard

Repair Kit Part Number: 68335231AA

Cavity Count: 60

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	M53	YE/VT	0.35	REAR DOME LAMP CONTROL	N/A
3	D403	OG/DB	0.50	LIN BUS CBC 3	N/A
4	B222	DG/WH	0.35	VEHICLE SPEED SIGNAL 2	N/A
6	G160	VT/GN	0.50	PASSENGER DOOR LOCK SWITCH MUX	N/A
7	G75	VT	0.50	DRIVER DOOR AJAR SWITCH SENSE	N/A
8	G74	VT/WH	0.50	PASSENGER DOOR AJAR SWITCH SENSE	N/A
9	N0	NA	0	NO CONNECT	N/A
10	Q27	OG	0.50	LEFT REAR WINDOW SWITCH MUX	N/A
11	N0	NA	0	NO CONNECT	N/A
12	M37	YE/BG	0.35	COURTESY LAMPS DRIVER	N/A
13	Q30	OG/DG	0.50	RIGHT REAR WINDOW SWITCH MUX	N/A
14	G161	VT/DG	0.50	LEFT DOOR LOCK SWITCH MUX	N/A
15	D950	OG/BN	0.35	ANT UHF ANT SIG	N/A
16	L1	WH/GN	0.75	BACKUP LAMP FEED	N/A
17	L117	BG/DB	0.75	LEFT FRONT PARK LAMP DRIVER	N/A
18	L118	BG/OG	0.75	RIGHT FRONT PARK LAMP DRIVER	N/A
19	L54	WH/GN	0.75	RIGHT STOP LAMP DRIVER	N/A
20	G76	VT/YE	0.35	RIGHT REAR DOOR AJAR SWITCH SENSE	N/A
21	G109	BK	0.50	FUEL LEVEL SENSE RETURN	N/A
22	M38	YE/BU	0.35	COURTESY LAMPS DRIVER	N/A
23	G78	VT/OG	0.50	DECKLID/LIFTGATE AJAR SWITCH SENSE	EXCEPT POWER LIFTGATE
23	G178	VT/OG	0.35	DECKLID/LIFTGATE AJAR SWITCH SENSE	POWER LIFTGATE
24	G77	VT/GY	0.50	LEFT REAR DOOR AJAR SWITCH SENSE	N/A
25	N4	DB/WH	0.50	FUEL LEVEL SENSOR SIGNAL	N/A
27	Q28	BG/OG	0.50	PASSENGER WINDOW SWITCH MUX	N/A
28	D402	OG/VT	0.50	LIN BUS CBC 2	N/A
29	P223	GN/WH	0.50	DECKLID/LIFTGATE RELEASE SWITCH SENSE	N/A
31	L899	WH/OG	0.75	REAR FOG LAMP FEED	N/A
32	M20	YE/BU	0.35	DOME LAMP CONTROL	N/A
33	L145	WH/OG	0.75	LEFT SIDE MARKER CONTROL	N/A
34	L62	WH/YE	0.75	RIGHT REAR TURN LAMP DRIVER	N/A
35	N0	NA	0	NO CONNECT	N/A
36	G931	VT/BN	0.50	SENSOR GROUND	N/A
37	N0	NA	0	NO CONNECT	N/A
38	Q33	OG/WH	0.50	LEFT REAR WINDOW SWITCH MUX	N/A
39	G755	VT/BG	0.50	DRIVER DOOR SECONDARY AJAR SWITCH SENSE	N/A
40	Q36	OG/VT	0.50	RIGHT REAR WINDOW SWITCH MUX	N/A
41	N0	NA	0	NO CONNECT	N/A
42	D18	WH/OG	0.50	CAN IHS (-)	N/A
43	D17	OG	0.50	CAN IHS (+)	N/A
44	N0	NA	0	NO CONNECT	N/A
45	G31	VT/GN	0.50	AAT SIGNAL	N/A
46	L52	WH	0.75	LEFT STOP LAMP DRIVER	N/A
47	M54	YE/WH	0.35	COURTESY LAMP FEED	N/A
48	L144	BG/OG	0.75	RIGHT SIDE MARKER CONTROL	N/A
49	L56	WH/VT	0.75	BRAKE LAMP SWITCH OUTPUT	N/A
50	L63	WH/DG	0.75	LEFT REAR TURN LAMP DRIVER	N/A
51	N0	NA	0	NO CONNECT	N/A
52	P807	GN/BU	0.50	INVERTER SWITCH SIGNAL	N/A
53	Q17	OG/GY	0.50	DOOR SWITCH FEED	N/A
54	P551	BG/BN	0.50	DRIVER MIRROR APPROACH LIGHT DRIVER	N/A
55	E12	OG/GY	0.35	PANEL LAMPS DRIVER	N/A
56	L3	WH/DB	0.75	LICENSE PLATE LAMP DRIVER	N/A
57	D2	YE	0.50	CAN C (-)	N/A
58	D1	BG/WH	0.50	CAN C (+)	N/A
59	N0	NA	0	NO CONNECT	N/A
60	L914	WH/GN	0.35	CARGO LAMP SWITCH SIGNAL	N/A
