Fuse F17 10A (Standard) Connector End View (F17)

Harness-Family: PDC_FRB

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F17

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 2

Fig 1: Fuse F17 10a Connector End View (Standard)

Courtesy of CHRYSLER

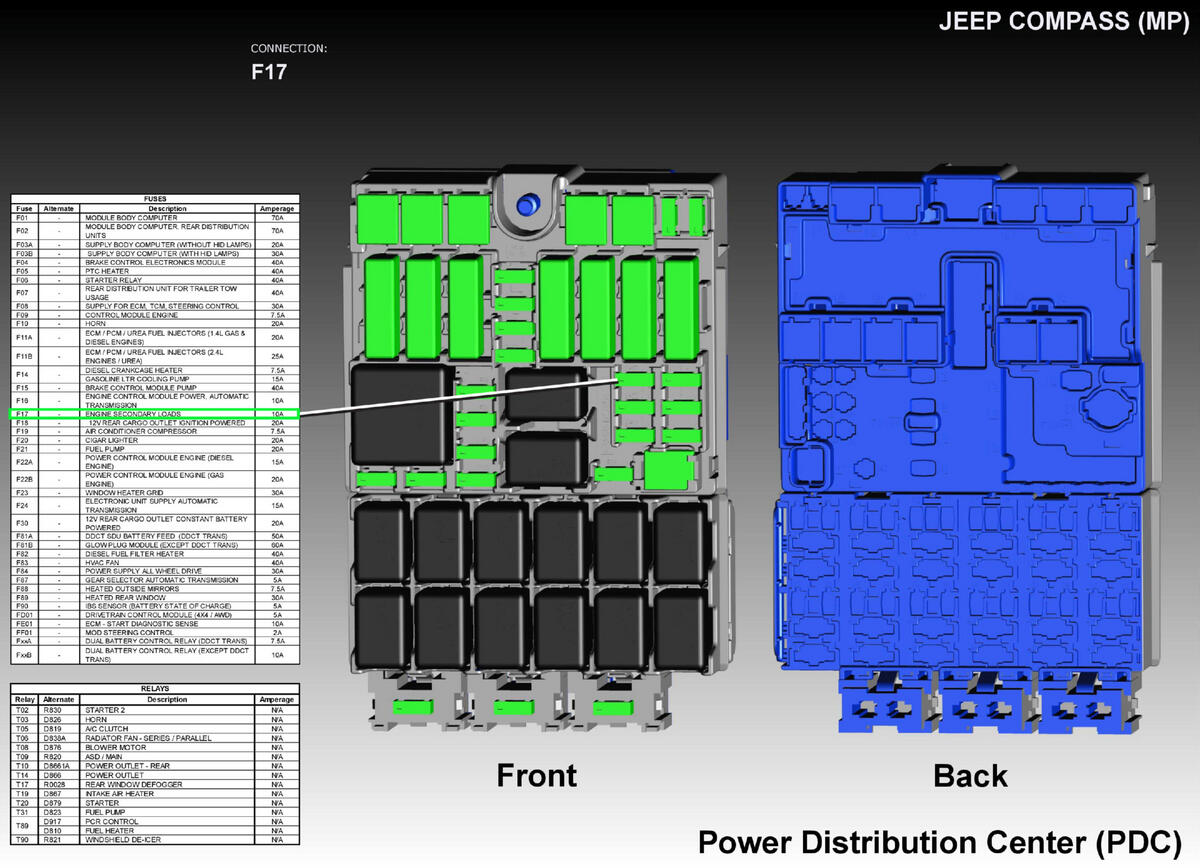

Fig 2: Fuse F17 10a Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A111	INTERNAL	NA	FUSED B(+)	N/A
2	F344	INTERNAL	NA	FUSED ASD RELAY OUTPUT	N/A
