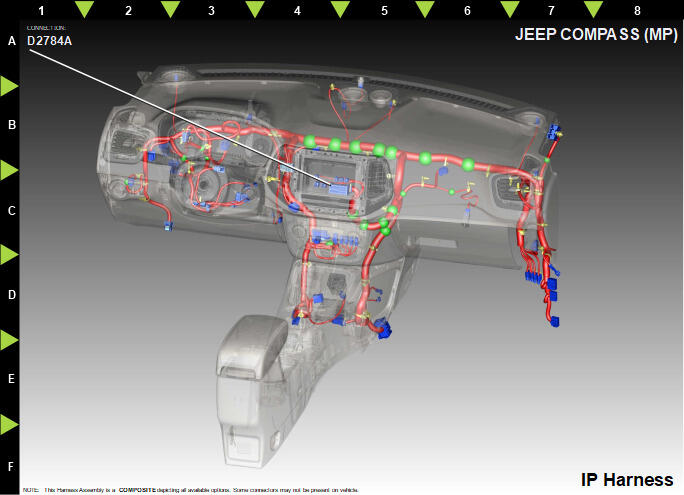

Radio C1 (Base) Connector End View (D2784A)
Harness-Family: IP
Color: BLACK
Gender: FEMALE
Part Number: 2203937-4
Part Description: Not Available
Connector No: D2784A
Option: BASE
Repair Kit Part Number: 68496345AA
Cavity Count: 52
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | D436 | GY | 0.50 | CAN C (+) AT | N/A |
| 2 | D437 | DB | 0.50 | CAN IHS (+) AT | N/A |
| 3 | R41 | BU/OG | 0.50 | AIRBAG DEPLOYMENT SIGNAL | N/A |
| 4 | N0 | NA | 0 | NO CONNECT | N/A |
| 5 | N0 | NA | 0 | NO CONNECT | N/A |
| 6 | X487 | GN/BU | 0.35 | AUX AUDIO RIGHT SIGNAL | N/A |
| 7 | X488 | GN/DB | 0.35 | AUX AUDIO COMMON | N/A |
| 8 | N0 | NA | 0 | NO CONNECT | N/A |
| 9 | N0 | NA | 0 | NO CONNECT | N/A |
| 10 | N0 | NA | 0 | NO CONNECT | N/A |
| 11 | D435 | YE/VT | 0.50 | CAN C (-) AT | N/A |
| 12 | D438 | WH | 0.50 | CAN IHS (-) AT | N/A |
| 13 | N0 | NA | 0 | NO CONNECT | N/A |
| 14 | N0 | NA | 0 | NO CONNECT | N/A |
| 15 | N0 | NA | 0 | NO CONNECT | N/A |
| 16 | X486 | GN/BG | 0.35 | AUX AUDIO LEFT SIGNAL | N/A |
| 17 | X489 | GN/YE | 0.35 | AUX AUDIO DEVICE DETECT SIGNAL | N/A |
| 18 | N0 | NA | 0 | NO CONNECT | N/A |
| 19 | N0 | NA | 0 | NO CONNECT | N/A |
| 20 | N0 | NA | 0 | NO CONNECT | N/A |
| 21 | N0 | NA | 0 | NO CONNECT | N/A |
| 22 | N0 | NA | 0 | NO CONNECT | N/A |
| 23 | N0 | NA | 0 | NO CONNECT | N/A |
| 24 | N0 | NA | 0 | NO CONNECT | N/A |
| 25 | N0 | NA | 0 | NO CONNECT | N/A |
| 26 | N0 | NA | 0 | NO CONNECT | N/A |
| 27 | N0 | NA | 0 | NO CONNECT | N/A |
| 28 | N0 | NA | 0 | NO CONNECT | N/A |
| 29 | X792 | BU/GN | 0.35 | MICROPHONE 1 IN (-) | N/A |
| 30 | X712 | DG/BU | 0.35 | MICROPHONE 1 IN (+) | N/A |
| 31 | X970 | DG/BN | 0.35 | CAMERA SIGNAL | N/A |
| 32 | X971 | DG/OG | 0.35 | CAMERA RETURN | N/A |
| 33 | S972 | BK | 0.75 | CAMERA SHIELD | N/A |
| 34 | N0 | NA | 0 | NO CONNECT | N/A |
| 35 | N0 | NA | 0 | NO CONNECT | N/A |
| 36 | N0 | NA | 0 | NO CONNECT | N/A |
| 37 | N0 | NA | 0 | NO CONNECT | N/A |
| 38 | N0 | NA | 0 | NO CONNECT | N/A |
| 39 | X723 | BU/BG | 0.35 | MICROPHONE 2 IN (-) | N/A |
| 40 | X722 | BU/DG | 0.35 | MICROPHONE 2 IN (+) | N/A |
| 41 | N0 | NA | 0 | NO CONNECT | N/A |
| 42 | N0 | NA | 0 | NO CONNECT | N/A |
| 43 | Z930 | BK/GN | 1.0 | GROUND | N/A |
| 44 | A98 | RD/GY | 1.0 | FUSED B(+) | START STOP |
| 44 | A910 | RD | 1.0 | FUSED B(+) | EXCEPT STOP START |
| 45 | X206 | DG/GN | 0.75 | RIGHT REAR SPEAKER (+) | N/A |
| 46 | X202 | DG/VT | 0.75 | RIGHT FRONT SPEAKER (+) | N/A |
| 47 | X201 | GY/VT | 0.75 | LEFT FRONT SPEAKER (+) | N/A |
| 48 | X205 | GY/GN | 0.75 | LEFT REAR SPEAKER (+) | N/A |
| 49 | X296 | DG/GY | 0.75 | RIGHT REAR SPEAKER (-) | N/A |
| 50 | X292 | DG/YE | 0.75 | RIGHT FRONT SPEAKER (-) | N/A |
| 51 | X291 | GY/YE | 0.75 | LEFT FRONT SPEAKER (-) | N/A |
| 52 | X295 | GY/DG | 0.75 | LEFT REAR SPEAKER (-) | N/A |
