Liftgate-Power Drive Unit (Standard) Connector End View (D6686A)

Harness-Family: Body

Color: GRAY

Gender: FEMALE

Part Number: 7283-6457-40

Part Description: KAIZEN YESC 2.8MM UNSEALED SUB ASSEMBLY

Connector No: D6686A

Option: Standard

Repair Kit Part Number: 68068653AA

Cavity Count: 10

Fig 1: Liftgate-Power Drive Unit Connector End View (Standard)

Courtesy of CHRYSLER

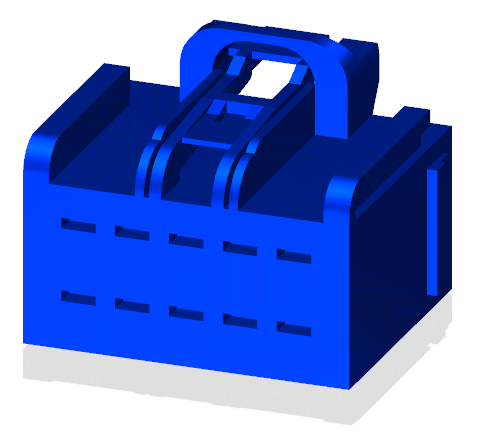

Fig 2: Liftgate-Power Drive Unit Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Liftgate-Power Drive Unit Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Liftgate-Power Drive Unit Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	Q901	OG/VT	0.35	LOGIC GROUND	N/A
4	Q201	OG/GN	0.50	LIFTGATE CLUTCH DRIVER	N/A
5	Q88	BG/BN	2.0	LIFTGATE OPEN DRIVER	N/A
6	Z943	BK/OG	2.0	GROUND	N/A
7	Q204	OG/DG	0.50	POSITION SENSOR SIGNAL 1	N/A
8	Q205	OG/DB	0.50	POSITION SENSOR SIGNAL 2	N/A
9	Q203	OG/BG	0.50	POSITION SENSOR SUPPLY	N/A
10	Q89	BG/OG	2.0	LIFTGATE CLOSE DRIVER	N/A
