Lamp-Assembly-Left Front (Base) Connector End View (D6605A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 7283-8852-30

Part Description: Not Available

Connector No: D6605A

Option: BASE

Repair Kit Part Number: 68528156AA

Cavity Count: 3

Fig 1: Lamp-Assembly-Left Front Connector End View (BASE)

Courtesy of CHRYSLER

Fig 2: Lamp-Assembly-Left Front Isometric View (BASE)

Courtesy of CHRYSLER

Fig 3: Lamp-Assembly-Left Front Wire Insertion View (BASE)

Courtesy of CHRYSLER

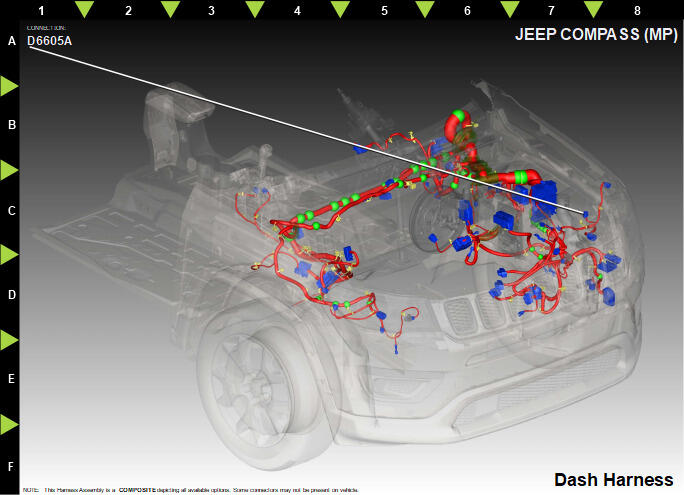

Fig 4: Lamp-Assembly-Left Front Component Location View (BASE)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F944	PK/GN	0.35	FUSED IGNITION	N/A
2	L133	WH/YE	0.50	HEADLAMP LEVEL MOTOR SIGNAL	N/A
3	Z907	BK	0.50	GROUND	N/A
