Can Bus Splice Block 3 (LHD) Connector End View (D3199A)

Harness-Family: IP

Color: NATURAL

Gender: FEMALE

Part Number: 7187-8856_7388-0317-60

Part Description: Not Available

Connector No: D3199A

Option: LHD

Repair Kit Part Number: 68502124AA

Cavity Count: 18

Fig 1: Can Bus Splice Block 3 Connector End View (LHD)

Courtesy of CHRYSLER

Fig 2: Can Bus Splice Block 3 Isometric View (LHD)

Courtesy of CHRYSLER

Fig 3: Can Bus Splice Block 3 Wire Insertion View (LHD)

Courtesy of CHRYSLER

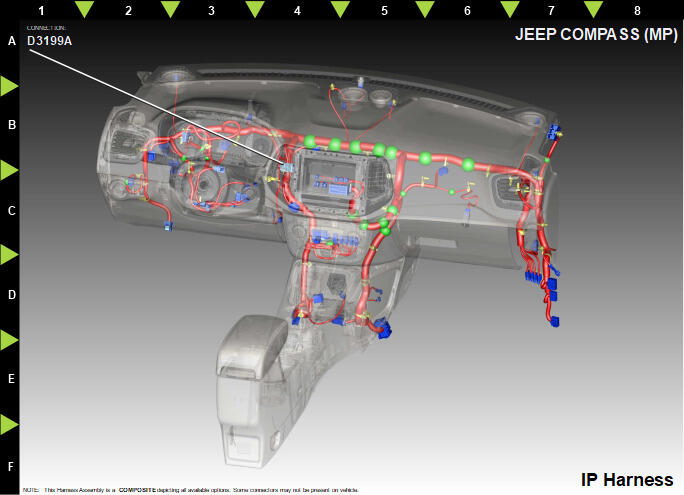

Fig 4: Can Bus Splice Block 3 Component Location View (LHD)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D17	OG	0.50	CAN IHS (+)	N/A
2	D17	OG	0.50	CAN IHS (+)	N/A
3	D353	VT/WH	0.50	CAN IHS (+)	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
7	D3	DB	0.50	CAN CH (+)	N/A
8	D3	DB	0.50	CAN CH (+)	N/A
9	D253	YE/DG	0.50	CAN CH (+)	N/A
10	D18	WH/OG	0.50	CAN IHS (-)	N/A
11	D18	WH/OG	0.50	CAN IHS (-)	N/A
12	D352	YE/DB	0.50	CAN IHS (-)	N/A
13	N0	NA	0	NO CONNECT	N/A
14	N0	NA	0	NO CONNECT	N/A
15	N0	NA	0	NO CONNECT	N/A
16	D4	YE	0.50	CAN CH (-)	N/A
17	D4	YE	0.50	CAN CH (-)	N/A
18	D252	YE	0.50	CAN CH (-)	N/A
