Sensor-Accelerator Pedal Position (Standard) Connector End View (D1563A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 6-929264-2

Part Description: Not Available

Connector No: D1563A

Option: Standard

Repair Kit Part Number: 68265990AA

Cavity Count: 6

Fig 1: Sensor-Accelerator Pedal Position Connector End View (Standard)

Courtesy of CHRYSLER

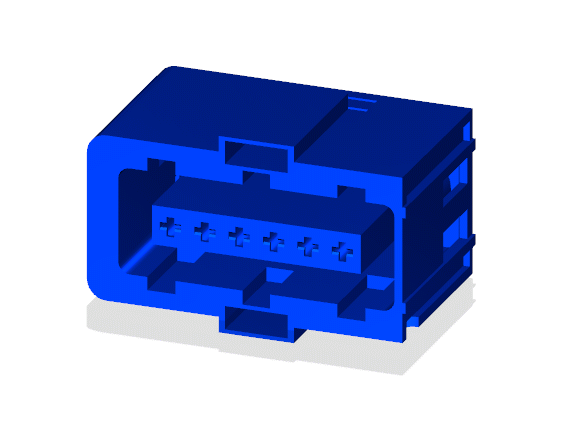

Fig 2: Sensor-Accelerator Pedal Position Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Accelerator Pedal Position Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Sensor-Accelerator Pedal Position Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K854	VT/BN	0.50	5 VOLT SUPPLY	N/A
2	K852	GY/BU	0.50	5 VOLT SUPPLY	N/A
3	K23	BN/WH	0.50	APP SIGNAL 1	N/A
4	K167	BN/YE	0.50	APP SENSOR GROUND 1	N/A
5	K400	BN/VT	0.50	APP SENSOR GROUND 2	N/A
6	K29	WH/BN	0.50	APP SIGNAL 2	N/A
