Removal And Installation: Installation
- Lubricate a NEW rubber grommet seal with clean washer fluid and install it into the washer level sensor mounting hole in the washer reservoir. Always use a NEW rubber grommet seal on the reservoir.
- Insert the washer level sensor through the rubber grommet seal and into the washer reservoir. The flat of the index tab on the washer fluid level switch mounting flange should be pointed upward.
- Using hand pressure, press firmly and evenly on the washer level sensor mounting flange until the barbed nipple is fully seated in the rubber grommet seal in the mounting hole of the washer reservoir.

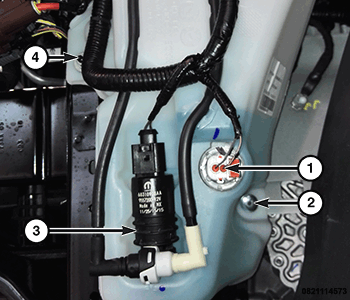

- Connect the washer fluid level sensor wiring harness connector (1).
- Install the left front wheel house shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- Fill the washer reservoir with the washer fluid siphoned from the reservoir during the removal procedure.
