Removal And Installation: Removal: Installation

WARNING: This page is about a different variant/trim than selected.
GC0183805Courtesy of CHRYSLER GROUP, LLC

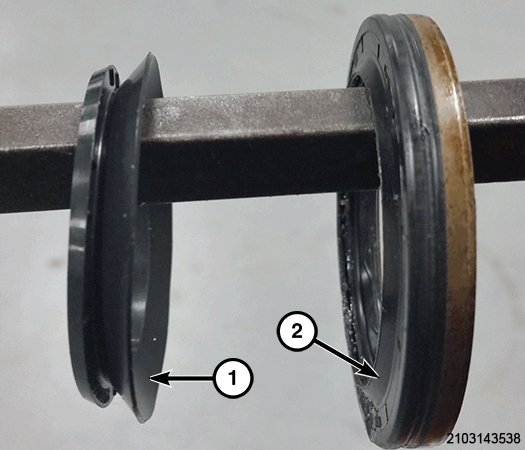

  1. The outer input shaft seal (1) will be in contact with the input shaft oil seal (2) when properly installed.
    GC0183808Courtesy of CHRYSLER GROUP, LLC

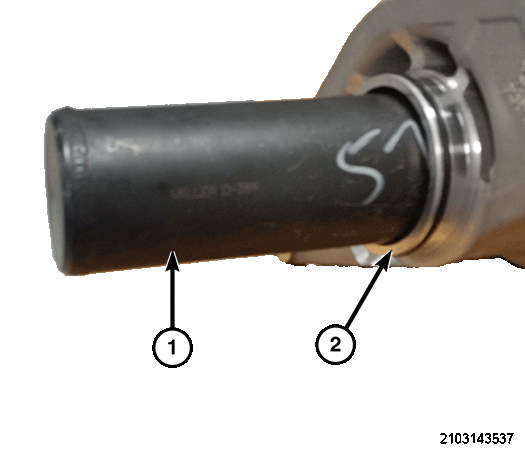

  2. Position a new oil seal on the input shaft, install the seal using (special tool #D-389, Installer, Bearing) (1) into the PTU (2).
  3. Install the outer seal over the input shaft and slide it against the input shaft oil seal using (special tool #D-389, Installer, Bearing).
  4. Install the PTU into the vehicle. Refer to REMOVAL AND INSTALLATION .
