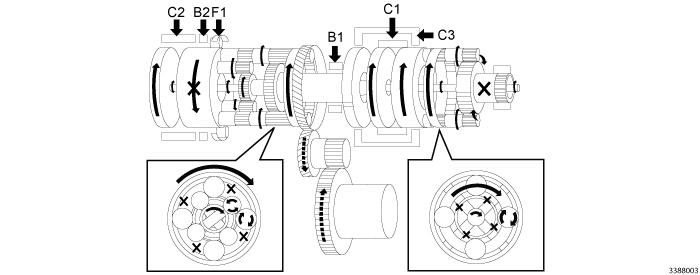

First Gear Power Flow

Courtesy of CHRYSLER GROUP, LLC

FIRST GEAR

SHIFTER POSITION	RANGE	SOLENOID						CLUTCH NUMBER			BRAKE NUMBER		ONE-WAY CLUTCH
SHIFTER POSITION	RANGE	SLC1	SLC2	SLC3	SLB1	S1	S2	C1	C2	C3	B1	B2	F1
D	FIRST	X	X	X	-	X	-	X	-	-	-	-	X
X = in operation

Courtesy of CHRYSLER GROUP, LLC

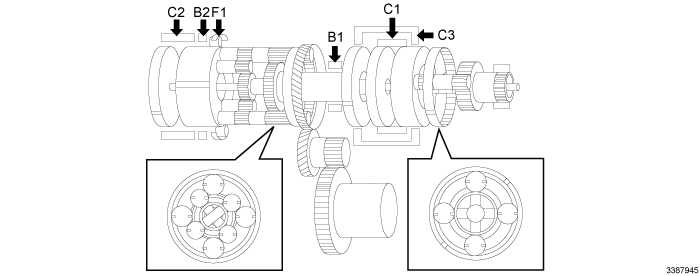

FIRST GEAR W / EXHAUST BRAKE

SHIFTER POSITION	RANGE	SOLENOID						CLUTCH NUMBER			BRAKE NUMBER		ONE-WAY CLUTCH
SHIFTER POSITION	RANGE	SLC1	SLC2	SLC3	SLB1	S1	S2	C1	C2	C3	B1	B2	F1
D	FIRST E/G B	X	-	X	-	-	X	X	-	-	-	X	X
X = in operation
