Description And Operation: Description: Notes

Courtesy of CHRYSLER GROUP, LLC

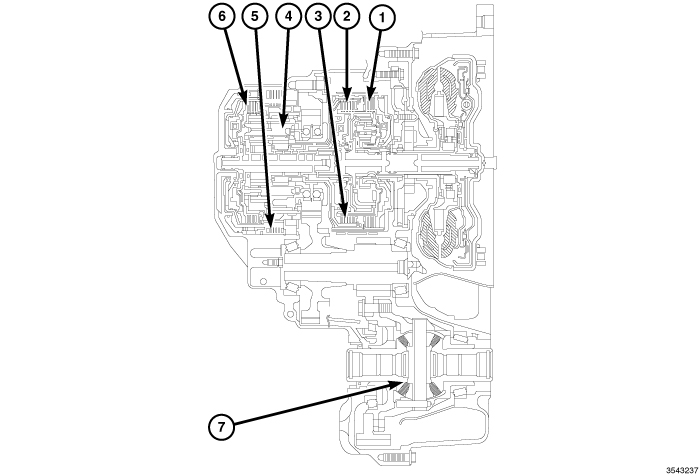

1 - C3 Clutch Assembly

6 - C2-Clutch Assembly

2 - B1 Brake Band

7 - Differential Assembly

3 - C1 Clutch Assembly

4 - One-Way Clutch

5 - B2 Clutch

The F21 250 Gen-III is an electronically controlled six-speed automatic transmission with a lock-up mechanism. The planetary geartrain for the transmission provides six forward gears and one reverse gear.
