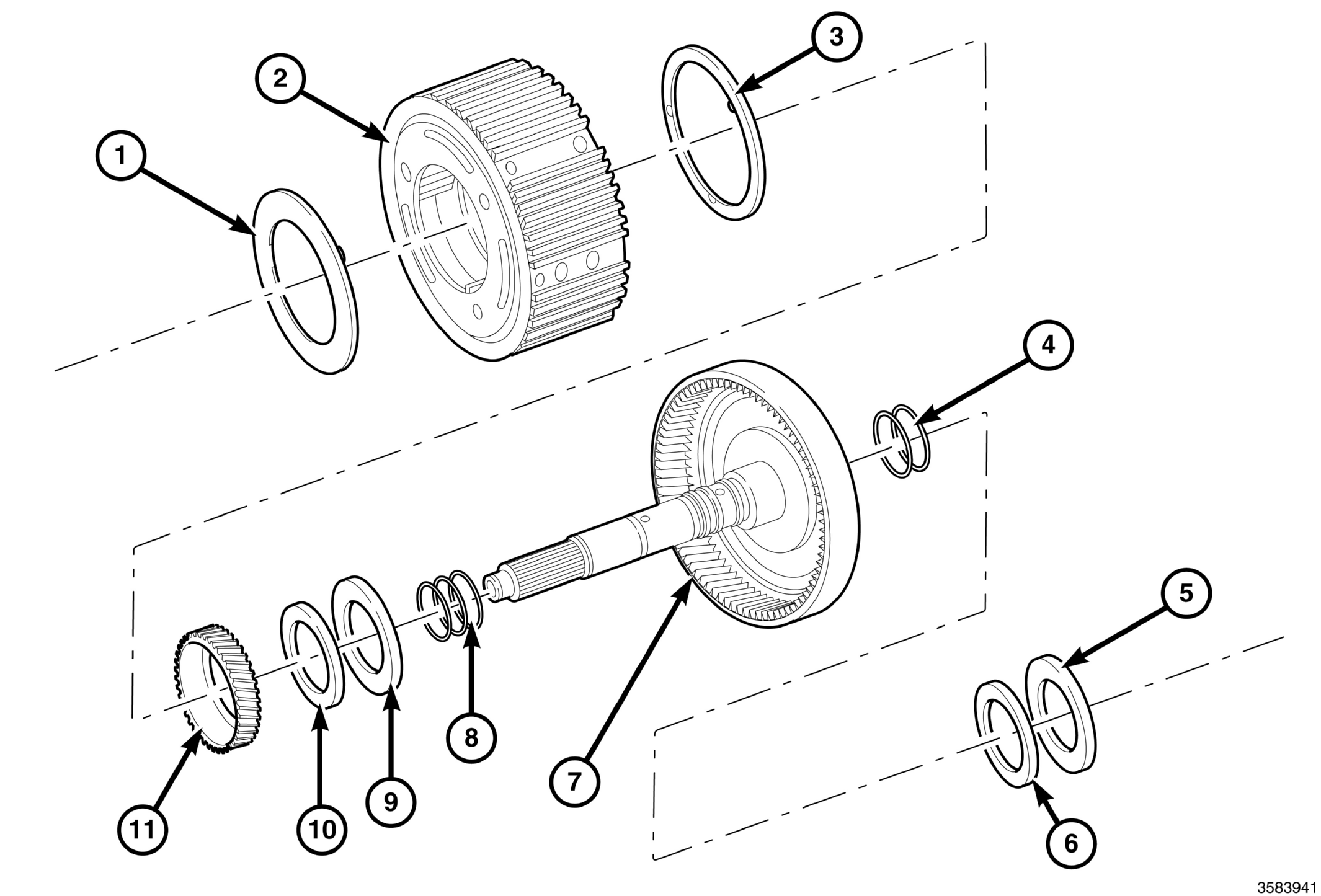

Front Planetary Gear Assembly And Input Shaft

Courtesy of CHRYSLER GROUP, LLC

1 - Thrust Washer

7 - Input Shaft

2 - Planetary Gear Assembly

8 - Oil Seals

3 - Thrust Washer

9 - Bearing Race

4 - Oil Seals

10 - Thrust Bearing with Race

5 - Bearing Race

11 - Planetary Sun Gear

6 - Thrust Bearing with Race
