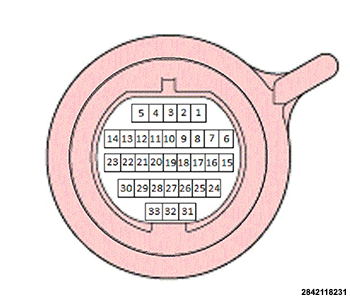

| PIN |
CIRCUIT |
PIN |
CIRCUIT |
| 1 |
Torque Converter Clutch Pressure Control Solenoid (SLU) + |
2 |
Torque Converter Clutch Pressure Control Solenoid (SLU) - |
| 3 |
Pressure Control Solenoid C (SL3) + |
4 |
Pressure Control Solenoid C (SL3) - |
| 5 |
Pressure Control Solenoid E (SL5) + |
6 |
Pressure Control Solenoid F (SLT) + |
| 7 |
Pressure Control Solenoid F (SLT) - |
8 |
Pressure Control Solenoid B (SL2) + |
| 9 |
Pressure Control Solenoid B (SL2) - |
10 |
Transmission Fluid Temperature Sensor + |
| 11 |
Output Speed Sensor + |
12 |
Pressure Control Solenoid E (SL5) - |
| 13 |
Pressure Control Solenoid A (SL1) + |
14 |
Pressure Control Solenoid A (SL1) - |
| 17 |
Input Speed Sensor - |
18 |
Input Speed Sensor + |
| 19 |
Transmission Fluid Temperature Sensor - |
20 |
Output Speed Sensor - |
| 23 |
Shift Solenoid 1 |
28 |
Shift Solenoid 2 |
| 29 |
Auxiliary Fluid Pump - (if equipped with ESS) |
30 |
Auxiliary Fluid Pump + (if equipped with ESS) |
