Switch Overhead-Liftgate Release (Standard) Connector End View (D2260A)

Harness-Family: Overhead_Console

Color: NATURAL

Gender: FEMALE

Part Number: AIT2PB-06-1FS

Part Description: Not Available

Connector No: D2260A

Option: Standard

Repair Kit Part Number: 68499646AA

Cavity Count: 6

Fig 1: Switch Overhead-Liftgate Release Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Switch Overhead-Liftgate Release Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch Overhead-Liftgate Release Wire Insertion View (Standard)

Courtesy of CHRYSLER

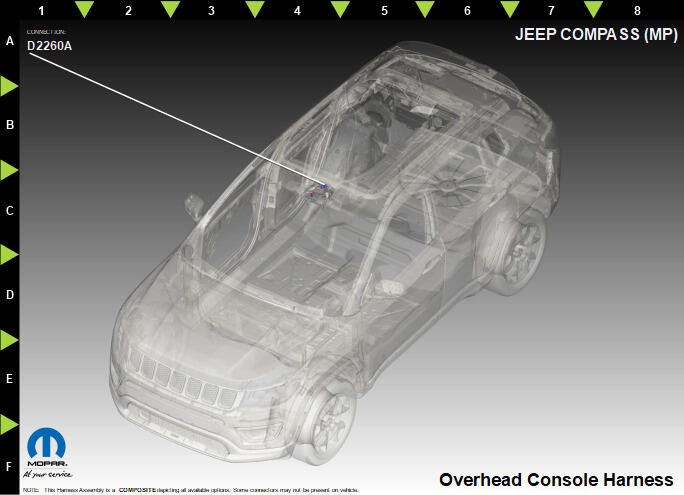

Fig 4: Switch Overhead-Liftgate Release Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	G25	VT/BG	0.35	OVERHEAD CONSOLE LIFTGATE SWITCH SIGNAL	N/A
2	Z931	BK	0.35	GROUND	N/A
3	Z931	BK	0.35	GROUND	N/A
4	E12	OG/GY	0.35	PANEL LAMPS DRIVER	N/A
5	N0		NA	NO CONNECT	N/A
6	N0		NA	NO CONNECT	N/A
