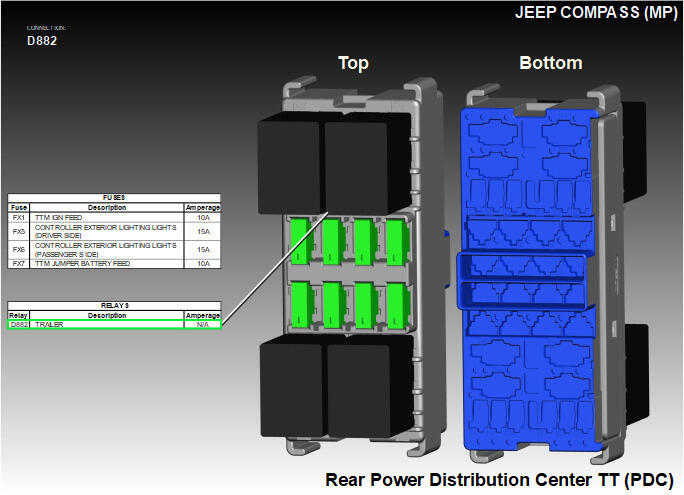

Relay-Trailer (Standard) Connector End View (D882)
Harness-Family: PDC_REAR_TT
Color: NA
Gender: MALE
Part Number: Relay_Micro
Part Description: Not Available
Connector No: D882
Option: Standard
Repair Kit Part Number: See StarParts
Cavity Count: 5
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 30 | F958 | INTERNAL | NA | IGNITION RUN/START | N/A |
| 85 | Z943 | INTERNAL | NA | GROUND | N/A |
| 86 | F944 | INTERNAL | NA | FUSED IGNITION | N/A |
| 87 | A100 | INTERNAL | NA | FUSED B(+) | N/A |
