Relay-Power Control C1 (Standard) Connector End View (D3157A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 805-120-532

Part Description: Not Available

Connector No: D3157A

Option: Standard

Repair Kit Part Number: 68475548AA

Cavity Count: 2

Fig 1: Relay-Power Control C1 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Relay-Power Control C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Relay-Power Control C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

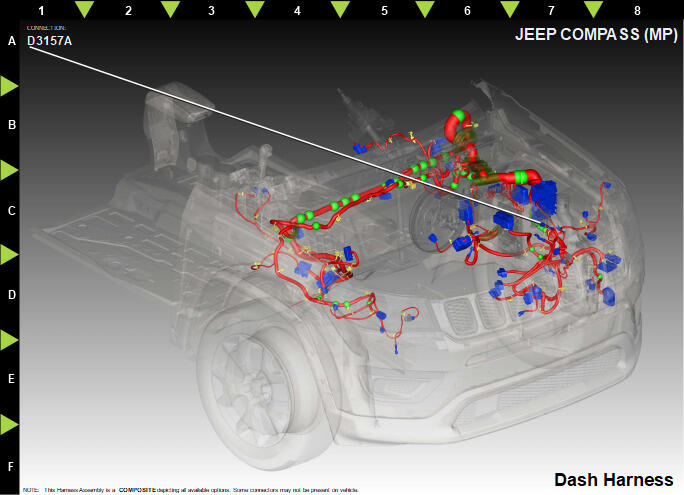

Fig 4: Relay-Power Control C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	T760	DG/BG	0.75	PCR CONTROL RELAY OUTPUT	N/A
2	Z913	BK/VT	0.50	GROUND	N/A
